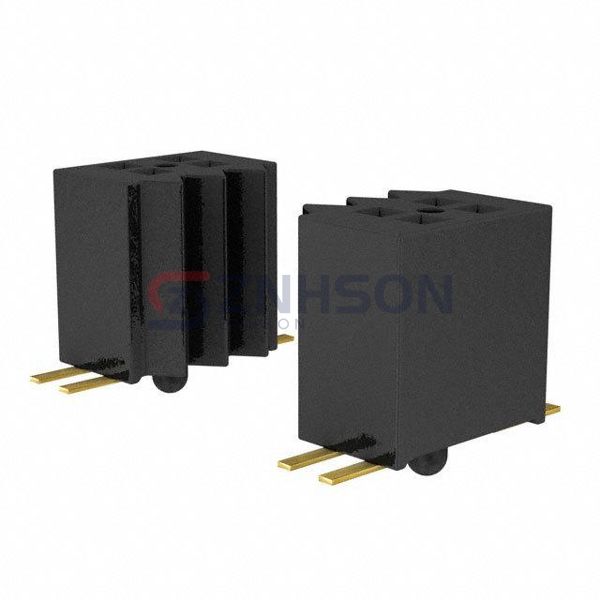

CLE-138-01-G-DV-A

Specifications

• Product Status: Active
• Connector Type: Receptacle, Pass Through
• Contact Type: Female Socket
• Style: Board to Board
• Number of Positions: 76
• Number of Positions Loaded: All
• Pitch - Mating: 0.031" (0.80mm)
• Number of Rows: 2
• Row Spacing - Mating: 0.047" (1.20mm)
• Mounting Type: Surface Mount
• Termination: Solder
• Fastening Type: Push-Pull
• Contact Finish - Mating: Gold
• Contact Finish Thickness - Mating: 10.0µin (0.25µm)
• Insulation Color: Black
• Insulation Height: 0.130" (3.30mm)
• Contact Length - Post: -
• Operating Temperature: -55°C ~ 125°C
• Material Flammability Rating: UL94 V-0
• Contact Finish - Post: Gold
• Mated Stacking Heights: -
• Ingress Protection: -
• Features: Board Guide
• Current Rating (Amps): 2.7A per Contact
• Voltage Rating: -
