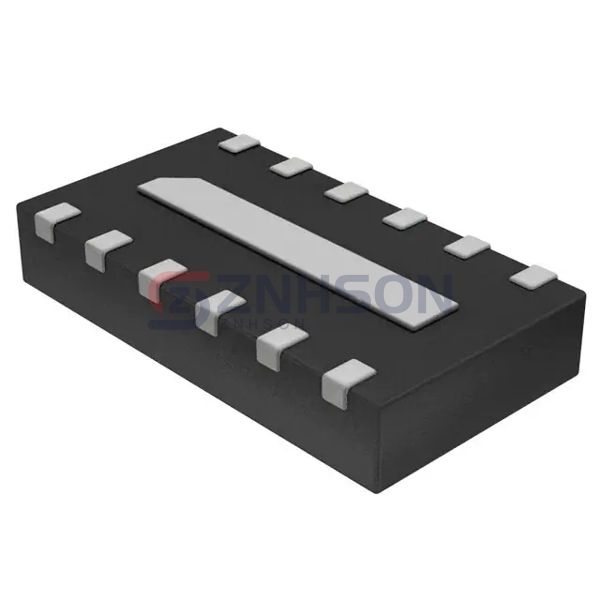

CM1693-06DE
onsemi
onsemi
FILTER LC(PI) 26NH/22PF ESD SMD
$0.23
Available to order
Reference Price (USD)
1+
$0.23000
500+
$0.2277
1000+
$0.2254
1500+
$0.2231
2000+
$0.2208
2500+
$0.2185
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic systems with onsemi's EMI/RFI Filters (LC, RC Networks). These filters are engineered to minimize interference and improve signal integrity. Ideal for medical equipment, aerospace, and consumer electronics, they offer robust performance and durability. Learn more about CM1693-06DE and request a sample now!
Specifications
- Product Status: Obsolete
- Type: Low Pass
- Filter Order: 3rd
- Technology: LC (Pi)
- Number of Channels: 6
- Center / Cutoff Frequency: 300MHz (Cutoff)
- Attenuation Value: -30dB @ 800MHz ~ 6GHz
- Resistance - Channel (Ohms): -
- Current: 30 mA
- Values: L = 26nH (Total), C = 22pF (Total)
- ESD Protection: Yes
- Operating Temperature: -40°C ~ 85°C
- Applications: Data Lines for Mobile Devices
- Voltage - Rated: -
- Mounting Type: Surface Mount
- Package / Case: 12-UFDFN Exposed Pad
- Size / Dimension: 0.098" L x 0.053" W (2.50mm x 1.35mm)
- Height: 0.022" (0.55mm)
Related Products
NXP USA Inc.
IP4327CX15135
Knowles Syfer
SBSGP5000102MXT
Murata Electronics
NFE31PT471F1E9L
KEMET
PMR205AC6470M220R30
NXP USA Inc.
PEMI8QFN/CM,132
NXP USA Inc.
PEMI6QFN/WR,132
Fairchild Semiconductor
ML6421CS5X
NXP USA Inc.

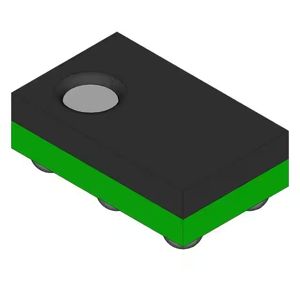

IP4054CX15/LF
NXP Semiconductors

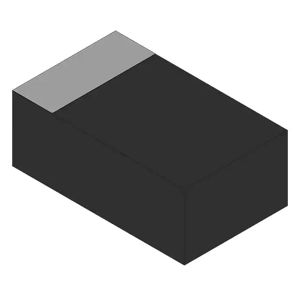

IP4256CZ3-M,315
