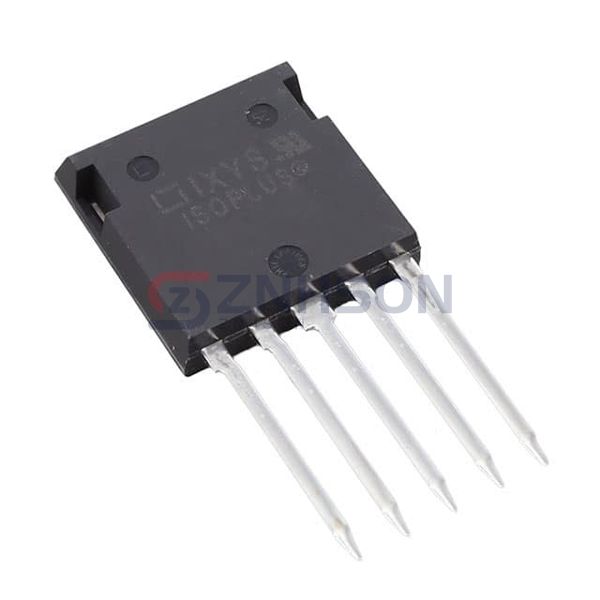

CMA50P1600FC

Specifications

• Product Status: Active
• Structure: Series Connection - All SCRs
• Number of SCRs, Diodes: 2 SCRs
• Voltage - Off State: 1.6 kV
• Current - On State (It (AV)) (Max): 50 A
• Current - On State (It (RMS)) (Max): 79 A
• Voltage - Gate Trigger (Vgt) (Max): 1.4 V
• Current - Gate Trigger (Igt) (Max): 80 mA
• Current - Non Rep. Surge 50, 60Hz (Itsm): 720A, 780A
• Current - Hold (Ih) (Max): 100 mA
• Operating Temperature: -40°C ~ 150°C (TJ)
• Mounting Type: Through Hole
• Package / Case: i4-Pac™-5
