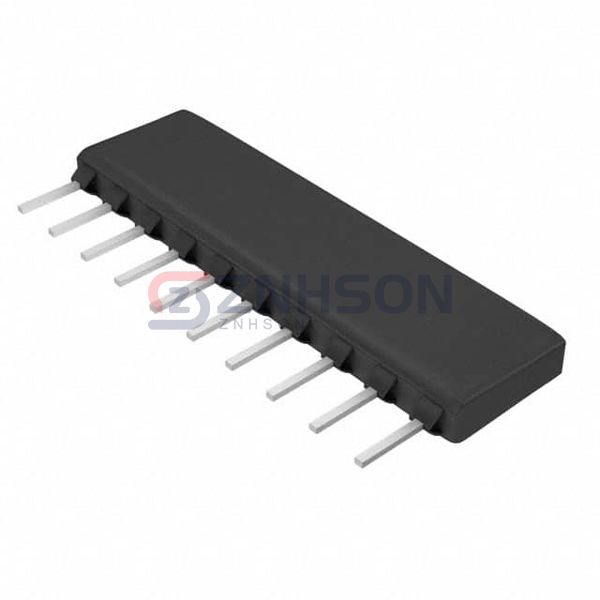

CSC10B014K70GPA
Vishay Dale
Vishay Dale
RES ARRAY 9 RES 4.7K OHM 10SIP
$3.30
Available to order
Reference Price (USD)
2,000+
$1.82875
5,000+
$1.79949
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Solve complex impedance matching challenges with Vishay Dale's CSC10B014K70GPA resistor arrays. These networks provide: Matched parasitics (<0.5pF) 50 /75 RF options Custom termination schemes. Essential for high-speed digital systems (DDR5 memory, 400GbE PHY) and 5G mmWave beamforming. Every CSC10B014K70GPA unit ships with a compliance certificate including 3D resistance mapping data. Visit our product page to download IBIS models or schedule a video consultation.
Specifications
- Product Status: Active
- Circuit Type: Bussed
- Resistance (Ohms): 4.7k
- Tolerance: ±2%
- Number of Resistors: 9
- Resistor Matching Ratio: -
- Resistor-Ratio-Drift: ±50ppm/°C
- Number of Pins: 10
- Power Per Element: 250mW
- Temperature Coefficient: ±100ppm/°C
- Operating Temperature: -55°C ~ 125°C
- Applications: -
- Mounting Type: Through Hole
- Package / Case: 10-SIP
- Supplier Device Package: 10-SIP
- Size / Dimension: 0.990" L x 0.098" W (25.15mm x 2.49mm)
- Height - Seated (Max): 0.295" (7.50mm)
