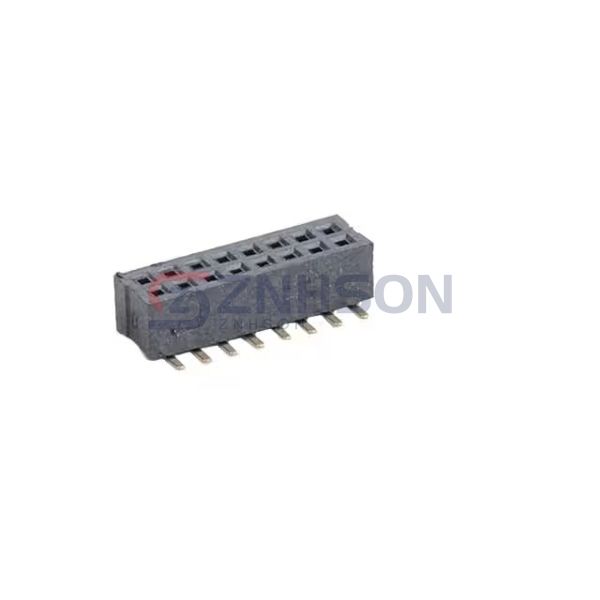

CSCC211-0802A001C1AF
Greenconn
Greenconn
1.00MM FEMALE HEADER DUAL ROWS S
$1.04
Available to order
Reference Price (USD)
1+
$1.04000
500+
$1.0296
1000+
$1.0192
1500+
$1.0088
2000+
$0.9984
2500+
$0.988
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The CSCC211-0802A001C1AF Greenconn Rectangular Connectors - Headers, Male Pins are designed for excellence in every connection. With features like polarized housings, vibration resistance, and RoHS compliance, they meet the highest industry standards. Suitable for LED lighting, HVAC systems, and more. Get yours today submit an inquiry now!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Female Socket
- Pitch - Mating: 0.039" (1.00mm)
- Number of Positions: 16
- Number of Rows: 2
- Row Spacing - Mating: 0.039" (1.00mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: -
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: -
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.089" (2.25mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: Gold
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: Pick and Place
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 1A
- Voltage Rating: -
Related Products
Samtec Inc.
FTSH-108-01-F-D-RA
Molex
5600200420
Würth Elektronik
61201621721
Amphenol ICC (FCI)
68021-452HLF
TE Connectivity AMP Connectors
8-87589-5
Samtec Inc.
MMT-126-01-S-MT-P
Molex
0878320408

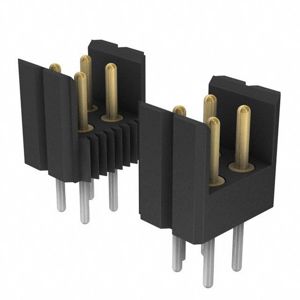

Preci-Dip
