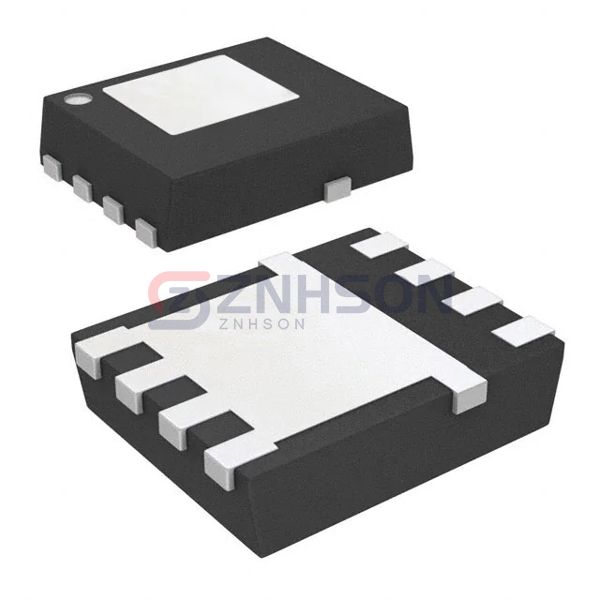

CSD16321Q5C
Texas Instruments
Texas Instruments
MOSFET N-CH 25V 31A/100A 8VSON
$1.98
Available to order
Reference Price (USD)
1+
$1.98000
500+
$1.9602
1000+
$1.9404
1500+
$1.9206
2000+
$1.9008
2500+
$1.881
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
For cutting-edge Transistors - FETs, MOSFETs - Single solutions, choose CSD16321Q5C by Texas Instruments. A key player in Discrete Semiconductor Products, this MOSFET boasts low RDS(on), high current capacity, and excellent switching characteristics. Its applications span across telecom infrastructure, medical devices, and consumer electronics. Elevate your designs with CSD16321Q5C inquire now for more details!
Specifications
- Product Status: Obsolete
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 25 V
- Current - Continuous Drain (Id) @ 25°C: 31A (Ta), 100A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 3V, 8V
- Rds On (Max) @ Id, Vgs: 2.4mOhm @ 25A, 8V
- Vgs(th) (Max) @ Id: 1.4V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 19 nC @ 4.5 V
- Vgs (Max): +10V, -8V
- Input Capacitance (Ciss) (Max) @ Vds: 3100 pF @ 12.5 V
- FET Feature: -
- Power Dissipation (Max): 3.1W (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 8-VSON-CLIP (5x6)
- Package / Case: 8-PowerTDFN
