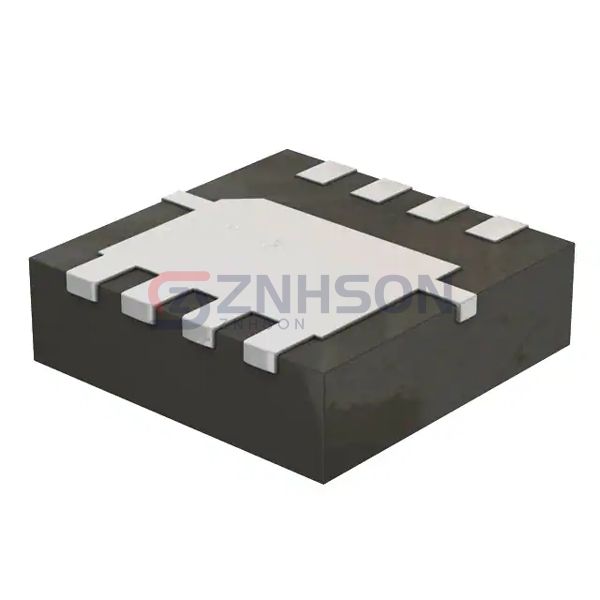

CSD16340Q3T
Texas Instruments
Texas Instruments
MOSFET N-CH 25V 60A 8VSON
$1.50
Available to order
Reference Price (USD)
1+
$1.50000
500+
$1.485
1000+
$1.47
1500+
$1.455
2000+
$1.44
2500+
$1.425
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with CSD16340Q3T by Texas Instruments, a top-tier choice in Discrete Semiconductor Products. Specifically crafted for Transistors - FETs, MOSFETs - Single applications, this product offers superior power handling and energy efficiency. Key features include high voltage tolerance, minimal power loss, and robust durability, making it perfect for switching and amplification tasks. Whether for industrial machinery, renewable energy systems, or portable devices, CSD16340Q3T ensures reliable operation. Ready to integrate this component into your project? Submit an inquiry now for pricing and availability!
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 25 V
- Current - Continuous Drain (Id) @ 25°C: 60A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 2.5V, 8V
- Rds On (Max) @ Id, Vgs: 4.5mOhm @ 20A, 8V
- Vgs(th) (Max) @ Id: 1.1V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 9.2 nC @ 4.5 V
- Vgs (Max): +10V, -8V
- Input Capacitance (Ciss) (Max) @ Vds: 1350 pF @ 12.5 V
- FET Feature: -
- Power Dissipation (Max): 3W (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 8-VSON-CLIP (3.3x3.3)
- Package / Case: 8-PowerTDFN
