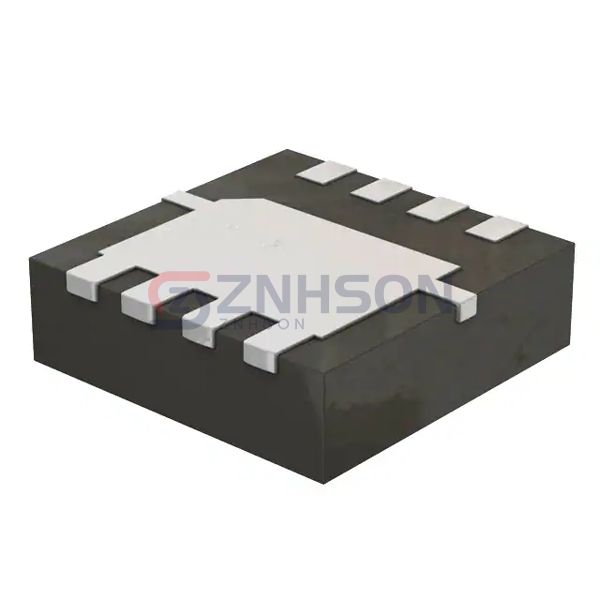

CSD16411Q3
Texas Instruments
Texas Instruments
MOSFET N-CH 25V 14A/56A 8VSON
$0.91
Available to order
Reference Price (USD)
2,500+
$0.34655
5,000+
$0.33460
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
For cutting-edge Transistors - FETs, MOSFETs - Single solutions, choose CSD16411Q3 by Texas Instruments. A key player in Discrete Semiconductor Products, this MOSFET boasts low RDS(on), high current capacity, and excellent switching characteristics. Its applications span across telecom infrastructure, medical devices, and consumer electronics. Elevate your designs with CSD16411Q3 inquire now for more details!
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 25 V
- Current - Continuous Drain (Id) @ 25°C: 14A (Ta), 56A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 10mOhm @ 10A, 10V
- Vgs(th) (Max) @ Id: 2.3V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 3.8 nC @ 4.5 V
- Vgs (Max): +16V, -12V
- Input Capacitance (Ciss) (Max) @ Vds: 570 pF @ 12.5 V
- FET Feature: -
- Power Dissipation (Max): 2.7W (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 8-VSONP (3x3.15)
- Package / Case: 8-PowerVDFN
