CSD16414Q5
Texas Instruments
Texas Instruments
MOSFET N-CH 25V 34A/100A 8VSON
$2.19
Available to order
Reference Price (USD)
2,500+
$0.90160
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your electronic systems with CSD16414Q5, a high-quality Transistors - FETs, MOSFETs - Single from Texas Instruments. This Discrete Semiconductor Products component is built for reliability, featuring enhanced thermal stability and fast response times. Perfect for automotive electronics, power tools, and IoT devices, CSD16414Q5 provides efficient power management solutions. Contact us today to discuss your requirements and place an order!
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 25 V
- Current - Continuous Drain (Id) @ 25°C: 34A (Ta), 100A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 1.9mOhm @ 30A, 10V
- Vgs(th) (Max) @ Id: 2V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 21 nC @ 4.5 V
- Vgs (Max): +16V, -12V
- Input Capacitance (Ciss) (Max) @ Vds: 3650 pF @ 12.5 V
- FET Feature: -
- Power Dissipation (Max): 3.2W (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 8-VSON-CLIP (5x6)
- Package / Case: 8-PowerTDFN
Related Products
Vishay Siliconix
SI4864DY-T1-GE3
Fairchild Semiconductor
FCPF1300N80ZYD
Wolfspeed, Inc.

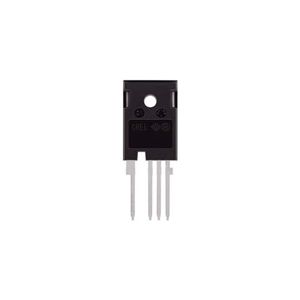

C3M0015065K
Vishay Siliconix

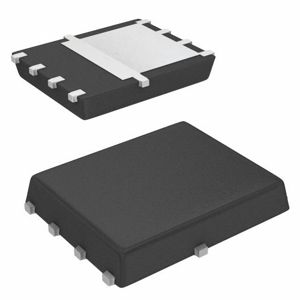

SI7858ADP-T1-GE3
onsemi
NTMFS5C410NLT1G
STMicroelectronics

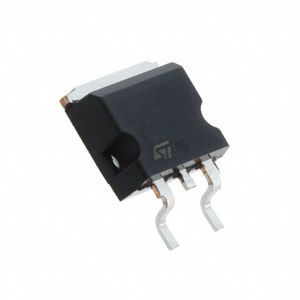

STB100N10F7
Alpha & Omega Semiconductor Inc.
AOB414
onsemi
NVTFS5116PLTAG
Infineon Technologies

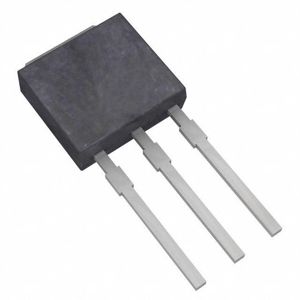

IPU60R2K1CEBKMA1
