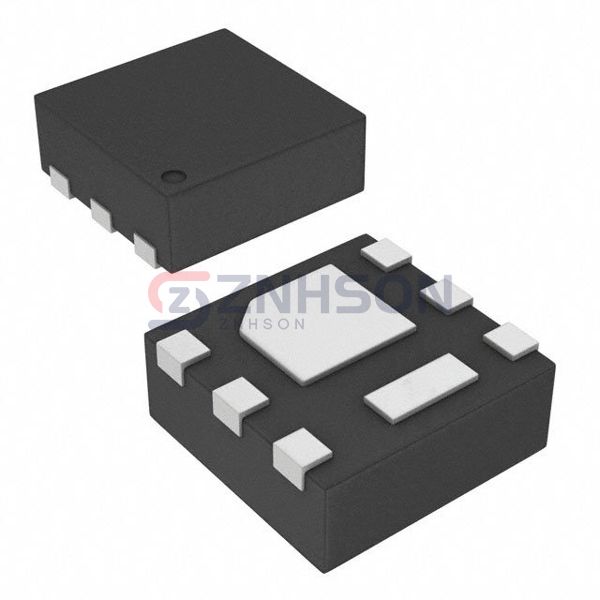

CSD17313Q2T
Texas Instruments
Texas Instruments
MOSFET N-CH 30V 5A 6WSON
$1.26
Available to order
Reference Price (USD)
1+
$1.26000
500+
$1.2474
1000+
$1.2348
1500+
$1.2222
2000+
$1.2096
2500+
$1.197
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover CSD17313Q2T, a versatile Transistors - FETs, MOSFETs - Single solution from Texas Instruments, a trusted name in Discrete Semiconductor Products. This MOSFET combines high power density with low on-resistance, perfect for compact and energy-efficient designs. Applications include solar inverters, electric vehicles, and wearable technology. Interested in this innovative component? Send us your inquiry now for more information!
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 30 V
- Current - Continuous Drain (Id) @ 25°C: 5A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 3V, 8V
- Rds On (Max) @ Id, Vgs: 30mOhm @ 4A, 8V
- Vgs(th) (Max) @ Id: 1.8V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 2.7 nC @ 4.5 V
- Vgs (Max): +10V, -8V
- Input Capacitance (Ciss) (Max) @ Vds: 340 pF @ 15 V
- FET Feature: -
- Power Dissipation (Max): 2.4W (Ta), 17W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 6-WSON (2x2)
- Package / Case: 6-WDFN Exposed Pad
