CSD22204WT
Texas Instruments
Texas Instruments

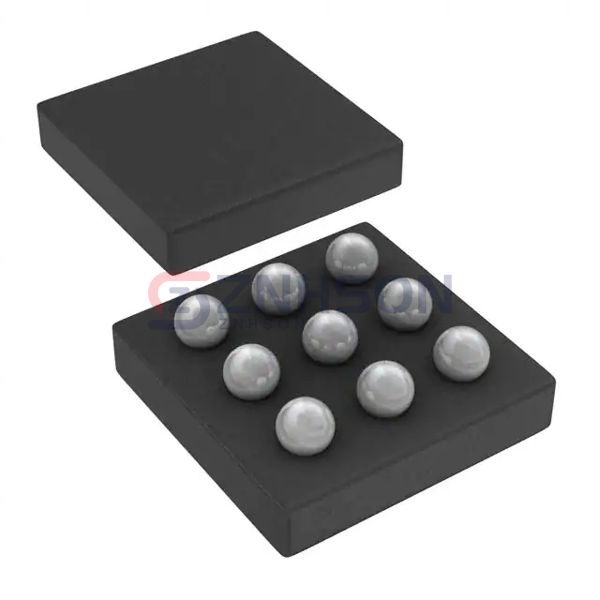

MOSFET P-CH 8V 5A 9DSBGA
$1.29
Available to order
Reference Price (USD)
250+
$0.42536
500+
$0.36200
750+
$0.31675
1,250+
$0.28960
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
For cutting-edge Transistors - FETs, MOSFETs - Single solutions, choose CSD22204WT by Texas Instruments. A key player in Discrete Semiconductor Products, this MOSFET boasts low RDS(on), high current capacity, and excellent switching characteristics. Its applications span across telecom infrastructure, medical devices, and consumer electronics. Elevate your designs with CSD22204WT inquire now for more details!
Specifications
- Product Status: Active
- FET Type: P-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 8 V
- Current - Continuous Drain (Id) @ 25°C: 5A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 2.5V, 4.5V
- Rds On (Max) @ Id, Vgs: 9.9mOhm @ 2A, 4.5V
- Vgs(th) (Max) @ Id: 950mV @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 24.6 nC @ 4.5 V
- Vgs (Max): -6V
- Input Capacitance (Ciss) (Max) @ Vds: 1130 pF @ 4 V
- FET Feature: -
- Power Dissipation (Max): 1.7W (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 9-DSBGA
- Package / Case: 9-UFBGA, DSBGA
