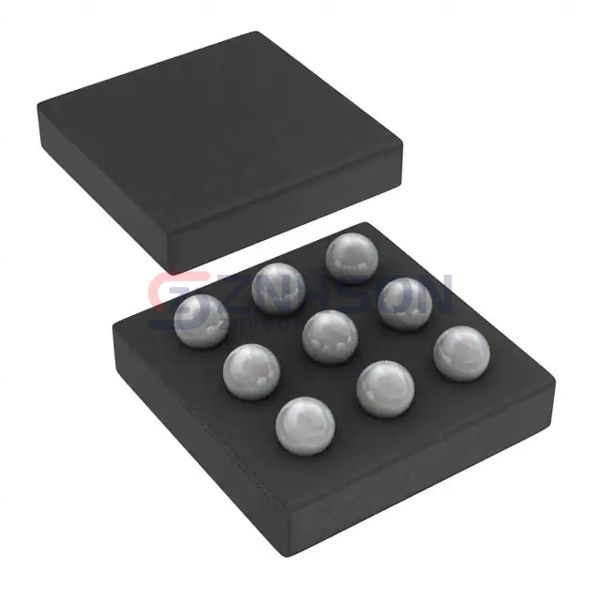

CSD25201W15
Texas Instruments
Texas Instruments
MOSFET P-CH 20V 4A 9DSBGA
$0.31
Available to order
Reference Price (USD)
1+
$0.31000
500+
$0.3069
1000+
$0.3038
1500+
$0.3007
2000+
$0.2976
2500+
$0.2945
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your circuit performance with CSD25201W15, a premium Transistors - FETs, MOSFETs - Single from Texas Instruments. As part of the Discrete Semiconductor Products lineup, this MOSFET excels in delivering high-speed switching and low power consumption. Its advanced design reduces heat generation and improves efficiency, suitable for power supplies, motor controls, and LED lighting. Trust CSD25201W15 for consistent quality and long-lasting performance. For bulk orders or custom specifications, reach out to our sales team today!
Specifications
- Product Status: Obsolete
- FET Type: P-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 20 V
- Current - Continuous Drain (Id) @ 25°C: 4A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 1.8V, 4.5V
- Rds On (Max) @ Id, Vgs: 40mOhm @ 2A, 4.5V
- Vgs(th) (Max) @ Id: 1.1V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 5.6 nC @ 4.5 V
- Vgs (Max): -6V
- Input Capacitance (Ciss) (Max) @ Vds: 510 pF @ 10 V
- FET Feature: -
- Power Dissipation (Max): 1.5W (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 9-DSBGA
- Package / Case: 9-UFBGA, DSBGA
Related Products
Vishay Siliconix
SIHFR320-GE3
STMicroelectronics
STD130N4F6AG
IXYS
IXFR80N50P
Nexperia USA Inc.
BUK7Y7R2-60EX
Diotec Semiconductor
MMFTP84
Toshiba Semiconductor and Storage
TK4K1A60F,S4X
Rohm Semiconductor
R6047ENZ4C13
STMicroelectronics
STWA70N65DM6
Microchip Technology

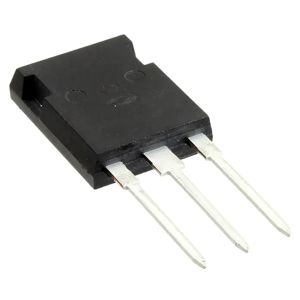

APT6029BFLLG
