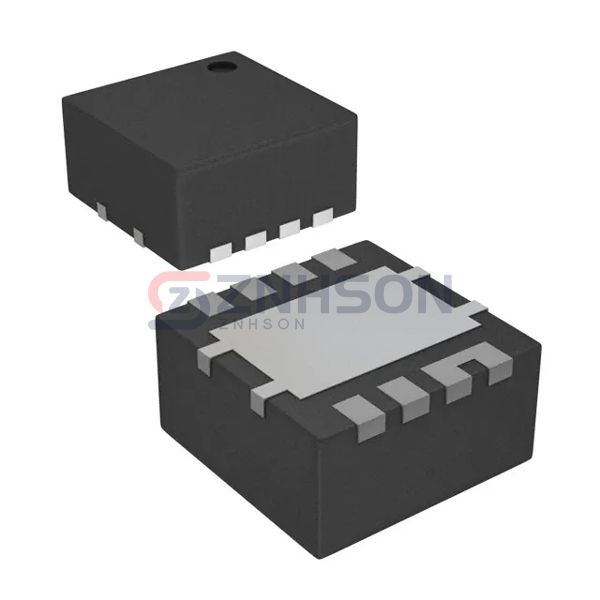

CSD86336Q3D
Texas Instruments
Texas Instruments
25V POWERBLOCK N CH MOSFET
$0.83
Available to order
Reference Price (USD)
2,500+
$0.73360
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The CSD86336Q3D by Texas Instruments is a standout in the Discrete Semiconductor Products category, specifically for Transistors - FETs, MOSFETs - Arrays. Engineered for excellence, these components offer unmatched reliability and performance. Features such as high voltage tolerance, low gate charge, and superior thermal management make them a preferred choice. Applications range from industrial automation to consumer electronics. Don t miss out on the opportunity to integrate CSD86336Q3D into your systems contact us for more details and pricing.
Specifications
- Product Status: Active
- FET Type: 2 N-Channel (Half Bridge)
- FET Feature: Logic Level Gate, 5V Drive
- Drain to Source Voltage (Vdss): 25V
- Current - Continuous Drain (Id) @ 25°C: 20A (Ta)
- Rds On (Max) @ Id, Vgs: 9.1mOhm @ 20A, 5V, 3.4mOhm @ 20A, 5V
- Vgs(th) (Max) @ Id: 1.9V @ 250µA, 1.6V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 3.8nC @ 45V, 7.4nC @ 45V
- Input Capacitance (Ciss) (Max) @ Vds: 494pF @ 12.5V, 970pF @ 12.5V
- Power - Max: 6W
- Operating Temperature: -55°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: 8-PowerTDFN
- Supplier Device Package: 8-VSON (3.3x3.3)
