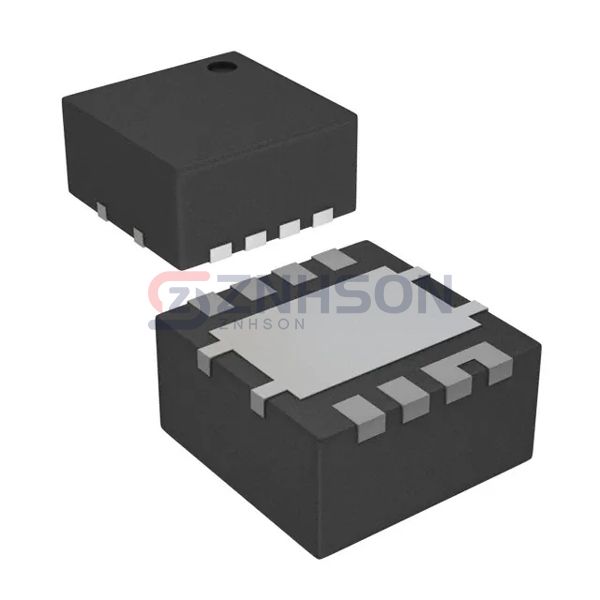

CSD86336Q3DT
Texas Instruments
Texas Instruments
SYNCHRONOUS BUCK NEXFET POWER BL
$2.01
Available to order
Reference Price (USD)
1+
$2.01000
500+
$1.9899
1000+
$1.9698
1500+
$1.9497
2000+
$1.9296
2500+
$1.9095
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Experience the next level of semiconductor technology with Texas Instruments s CSD86336Q3DT, part of the Discrete Semiconductor Products category for Transistors - FETs, MOSFETs - Arrays. These components are built to deliver exceptional performance with features like high current capacity, minimal power loss, and enhanced durability. Suitable for a wide array of applications including LED lighting, automotive systems, and renewable energy solutions. Get in touch with us today to request a sample or inquire about bulk pricing for CSD86336Q3DT.
Specifications
- Product Status: Active
- FET Type: 2 N-Channel (Half Bridge)
- FET Feature: Logic Level Gate, 5V Drive
- Drain to Source Voltage (Vdss): 25V
- Current - Continuous Drain (Id) @ 25°C: 20A (Ta)
- Rds On (Max) @ Id, Vgs: 9.1mOhm @ 20A, 5V, 3.4mOhm @ 20A, 5V
- Vgs(th) (Max) @ Id: 1.9V @ 250µA, 1.6V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 3.8nC @ 45V, 7.4nC @ 45V
- Input Capacitance (Ciss) (Max) @ Vds: 494pF @ 12.5V, 970pF @ 12.5V
- Power - Max: 6W
- Operating Temperature: -55°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: 8-PowerTDFN
- Supplier Device Package: 8-VSON (3.3x3.3)
