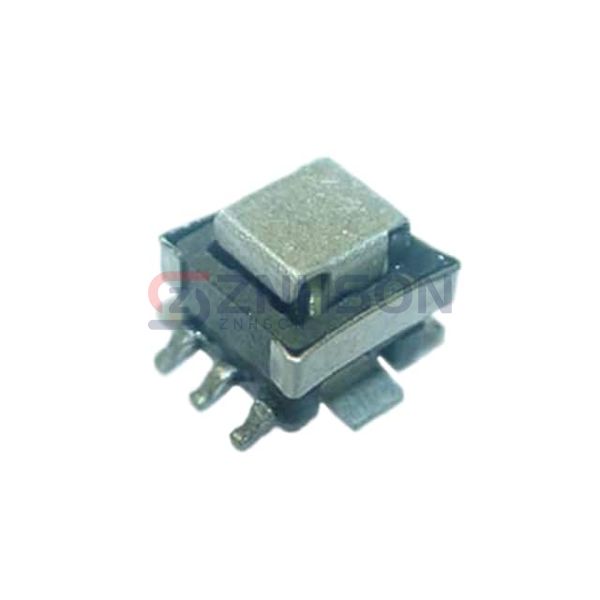

CSE5-100301
Triad Magnetics
Triad Magnetics
CURR SENSE XFMR 1:30 10A SMD
$1.92
Available to order
Reference Price (USD)
750+
$1.80992
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your current sensing capabilities with Triad Magnetics CSE5-100301 Current Sense Transformers, offering unmatched precision and reliability. These transformers are designed with high saturation resistance and minimal insertion loss, suitable for automotive, telecommunications, and medical equipment. Their advanced technology ensures accurate measurements in demanding environments. Ready to find the perfect fit for your application? Get in touch with us today for expert advice and competitive pricing.
Specifications
- Product Status: Active
- Frequency Range: 250kHz Min
- Type: Invasive
- Current Rating (Amps): 10 A
- Inductance: 180 µH
- ET (Volt-Time): -
- Turns Ratio - Primary:Secondary: 1:30
- Current Ratio: -
- DC Resistance (DCR): 870mOhm Secondary
- Ratings: -
- Mounting Type: Surface Mount
- Size / Dimension: 0.272" L x 0.303" W (6.90mm x 7.70mm)
- Height - Seated (Max): 0.210" (5.33mm)
- Termination Style: Gull Wing
