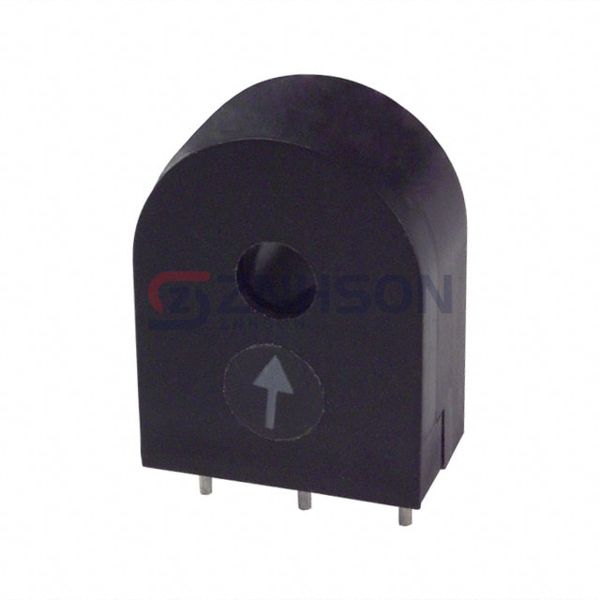

CST306-3T
Triad Magnetics
Triad Magnetics
CURR SENSE XFMR 25A T/H
$6.11
Available to order
Reference Price (USD)
1+
$5.71000
10+
$4.33700
25+
$4.22280
50+
$3.88040
100+
$3.65220
250+
$3.53804
500+
$3.42390
1,000+
$3.30977
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your current sensing capabilities with Triad Magnetics CST306-3T Current Sense Transformers, offering unmatched precision and reliability. These transformers are designed with high saturation resistance and minimal insertion loss, suitable for automotive, telecommunications, and medical equipment. Their advanced technology ensures accurate measurements in demanding environments. Ready to find the perfect fit for your application? Get in touch with us today for expert advice and competitive pricing.
Specifications
- Product Status: Active
- Frequency Range: 20kHz ~ 200kHz
- Type: Non-Invasive (Solid Core)
- Current Rating (Amps): 25 A
- Inductance: 55 mH
- ET (Volt-Time): 2000VµS
- Turns Ratio - Primary:Secondary: -
- Current Ratio: 200CT:1
- DC Resistance (DCR): 3.75Ohm Max
- Ratings: -
- Mounting Type: Through Hole
- Size / Dimension: 0.690" L x 0.385" W (17.53mm x 9.78mm)
- Height - Seated (Max): 0.915" (23.24mm)
- Termination Style: PC Pin
