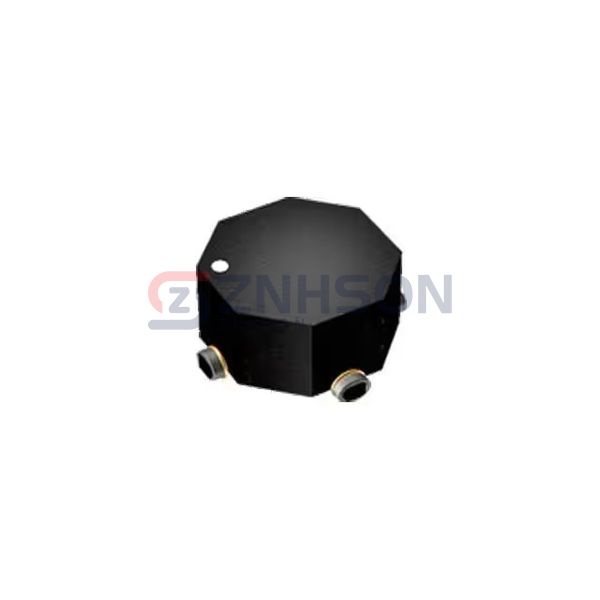

CTCTXF15-4P
Central Technologies
Central Technologies
14.76 UH 20% SMD TOROID CMC
$1.76
Available to order
Reference Price (USD)
1+
$1.76000
500+
$1.7424
1000+
$1.7248
1500+
$1.7072
2000+
$1.6896
2500+
$1.672
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The CTCTXF15-4P Central Technologies Inductors, Coils, and Chokes are designed to excel in Arrays and Signal Transformers applications. Offering high efficiency, compact size, and robust performance, they are ideal for portable electronics and power management systems. Don t miss out get a quote today and see why leading engineers trust our products!
Specifications
- Product Status: Active
- Number of Coils: 2
- Inductance - Connected In Parallel: 14.76 µH
- Inductance - Connected In Series: 59.05 µH
- Tolerance: ±20%
- Current Rating - Parallel: 2.3 A
- Current Rating - Series: 1.15 A
- Current Saturation - Parallel: -
- Current Saturation - Series: -
- DC Resistance (DCR) - Parallel: 57mOhm Max
- DC Resistance (DCR) - Series: 228mOhm Max
- Shielding: Unshielded
- Ratings: -
- Operating Temperature: -40°C ~ 85°C
- Mounting Type: Surface Mount
- Package / Case: Horizontal, 4 PC Pad
- Size / Dimension: 0.547" L x 0.547" W (13.90mm x 13.90mm)
- Height: 0.272" (6.90mm)
