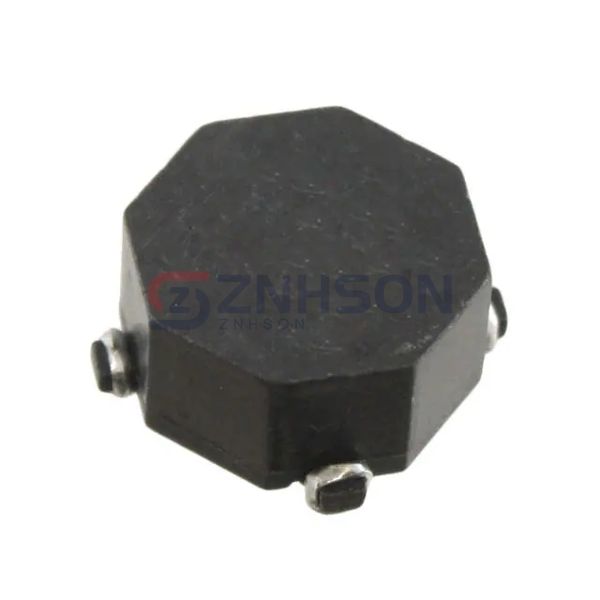

CTX15-4A-R
Eaton - Electronics Division
Eaton - Electronics Division
INDUCT ARRAY 2 COIL 14.7UH SMD
$6.47
Available to order
Reference Price (USD)
1+
$6.47000
500+
$6.4053
1000+
$6.3406
1500+
$6.2759
2000+
$6.2112
2500+
$6.1465
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The CTX15-4A-R Eaton - Electronics Division Inductors, Coils, and Chokes are engineered to meet the highest industry standards. Our Arrays and Signal Transformers feature compact designs, high inductance values, and excellent thermal stability, suitable for consumer electronics and medical devices. Whether you need bulk orders or customized specifications, we ve got you covered. Don t hesitate request a quote today and experience top-tier quality!
Specifications
- Product Status: Active
- Number of Coils: 2
- Inductance - Connected In Parallel: 14.7 µH
- Inductance - Connected In Series: 58.81 µH
- Tolerance: ±25%
- Current Rating - Parallel: 3.87 A
- Current Rating - Series: 1.94 A
- Current Saturation - Parallel: 3.46 A
- Current Saturation - Series: 1.73 A
- DC Resistance (DCR) - Parallel: 29mOhm Max
- DC Resistance (DCR) - Series: 117mOhm Max
- Shielding: Unshielded
- Ratings: -
- Operating Temperature: -40°C ~ 85°C
- Mounting Type: Surface Mount
- Package / Case: Nonstandard
- Size / Dimension: 0.550" L x 0.550" W (13.97mm x 13.97mm)
- Height: 0.250" (6.35mm)
