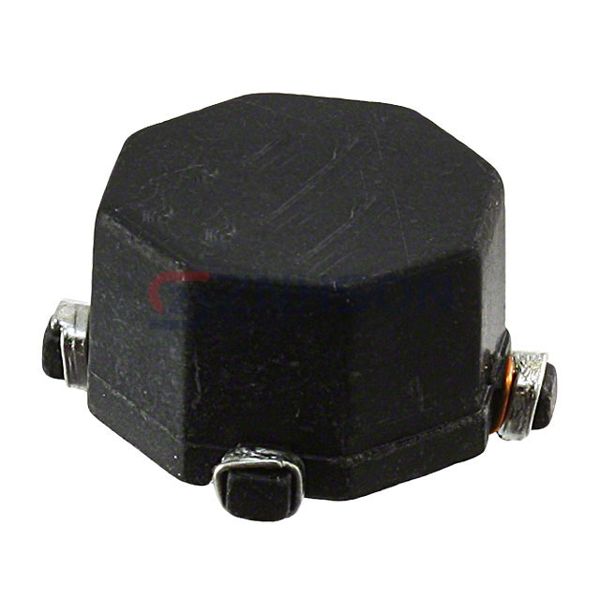

CTX20-2A-R
Eaton - Electronics Division
Eaton - Electronics Division
INDUCT ARRAY 2 COIL 20.22UH SMD
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Maximize efficiency with CTX20-2A-R Eaton - Electronics Division Inductors, Coils, and Chokes, tailored for Arrays and Signal Transformers. These components boast low core loss, high saturation current, and robust construction, ideal for aerospace, defense, and renewable energy applications. Trust in our reliable products to meet your technical requirements. Get in touch now for competitive pricing and fast delivery!
Specifications
- Product Status: Obsolete
- Number of Coils: 2
- Inductance - Connected In Parallel: 20.22 µH
- Inductance - Connected In Series: 80.9 µH
- Tolerance: ±25%
- Current Rating - Parallel: 2.24 A
- Current Rating - Series: 1.12 A
- Current Saturation - Parallel: 2.34 A
- Current Saturation - Series: 1.17 A
- DC Resistance (DCR) - Parallel: 78mOhm Max
- DC Resistance (DCR) - Series: 313mOhm Max
- Shielding: Unshielded
- Ratings: -
- Operating Temperature: -40°C ~ 85°C
- Mounting Type: Surface Mount
- Package / Case: Nonstandard
- Size / Dimension: 0.450" L x 0.450" W (11.43mm x 11.43mm)
- Height: 0.235" (5.97mm)
