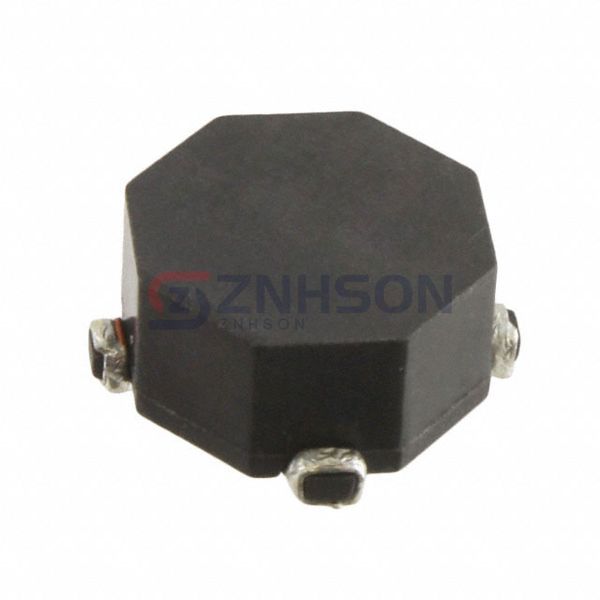

CTX20-4P-R
Eaton - Electronics Division
Eaton - Electronics Division
INDUCT ARRAY 2 COIL 20.62UH SMD
$5.59
Available to order
Reference Price (USD)
1+
$5.59000
500+
$5.5341
1000+
$5.4782
1500+
$5.4223
2000+
$5.3664
2500+
$5.3105
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Achieve peak performance with CTX20-4P-R Eaton - Electronics Division Inductors, Coils, and Chokes, tailored for Arrays and Signal Transformers. These components feature advanced materials and precise engineering, ensuring reliability in automotive, industrial, and consumer applications. For more details or to discuss your specific needs, reach out to our team now we re here to help!
Specifications
- Product Status: Active
- Number of Coils: 2
- Inductance - Connected In Parallel: 20.62 µH
- Inductance - Connected In Series: 82.47 µH
- Tolerance: ±20%
- Current Rating - Parallel: 1.9 A
- Current Rating - Series: 950 mA
- Current Saturation - Parallel: -
- Current Saturation - Series: -
- DC Resistance (DCR) - Parallel: 84mOhm Max
- DC Resistance (DCR) - Series: 337mOhm Max
- Shielding: Unshielded
- Ratings: -
- Operating Temperature: -40°C ~ 85°C
- Mounting Type: Surface Mount
- Package / Case: Nonstandard
- Size / Dimension: 0.550" L x 0.550" W (13.97mm x 13.97mm)
- Height: 0.250" (6.35mm)
