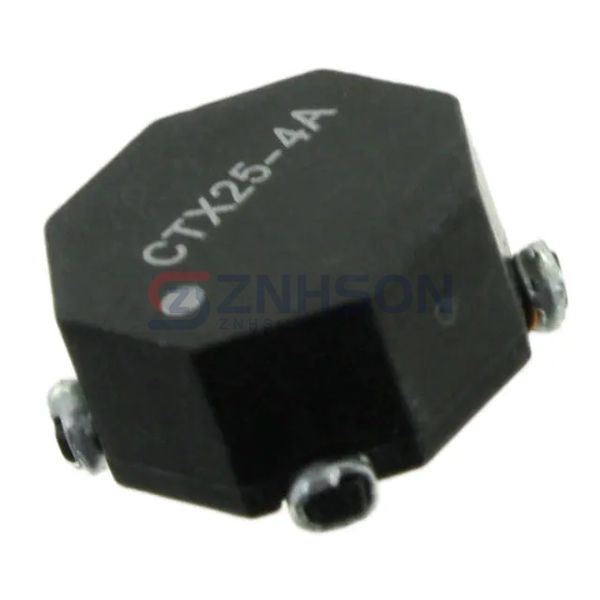

CTX25-4A-R
Eaton - Electronics Division
Eaton - Electronics Division
INDUCT ARRAY 2 COIL 25.14UH SMD
$5.84
Available to order
Reference Price (USD)
1+
$5.84000
500+
$5.7816
1000+
$5.7232
1500+
$5.6648
2000+
$5.6064
2500+
$5.548
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The CTX25-4A-R Eaton - Electronics Division Inductors, Coils, and Chokes deliver exceptional performance in Arrays and Signal Transformers applications. With features like high current handling and minimal signal distortion, they are ideal for audio, video, and data transmission systems. Ready to take your projects to the next level? Request a sample or inquire about bulk pricing today!
Specifications
- Product Status: Active
- Number of Coils: 2
- Inductance - Connected In Parallel: 25.14 µH
- Inductance - Connected In Series: 100.51 µH
- Tolerance: ±25%
- Current Rating - Parallel: 3.02 A
- Current Rating - Series: 1.51 A
- Current Saturation - Parallel: 2.65 A
- Current Saturation - Series: 1.32 A
- DC Resistance (DCR) - Parallel: 48mOhm Max
- DC Resistance (DCR) - Series: 193mOhm Max
- Shielding: Unshielded
- Ratings: -
- Operating Temperature: -40°C ~ 85°C
- Mounting Type: Surface Mount
- Package / Case: Nonstandard
- Size / Dimension: 0.550" L x 0.550" W (13.97mm x 13.97mm)
- Height: 0.250" (6.35mm)
