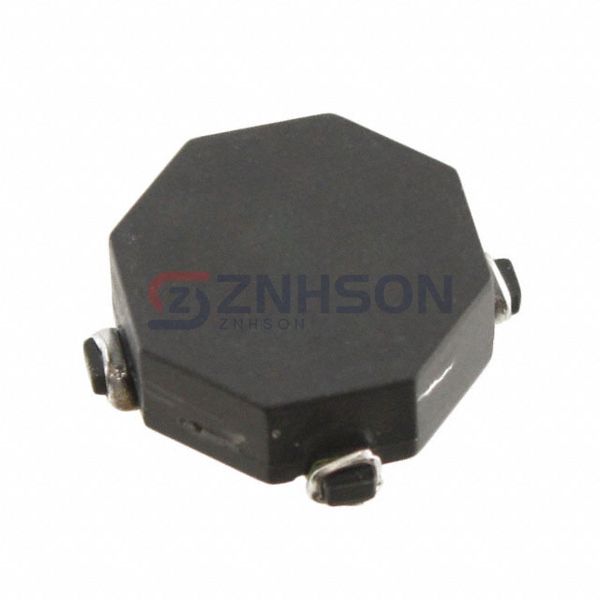

CTX50-3A-R
Eaton - Electronics Division
Eaton - Electronics Division
INDUCT ARRAY 2 COIL 49.71UH SMD
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The CTX50-3A-R Eaton - Electronics Division Inductors, Coils, and Chokes are your go-to solution for high-performance Arrays and Signal Transformers. Featuring excellent EMI suppression and wide operating temperature ranges, they are perfect for IoT devices, automotive systems, and industrial automation. Let us help you find the perfect fit for your needs contact us today for expert advice and a detailed proposal!
Specifications
- Product Status: Obsolete
- Number of Coils: 2
- Inductance - Connected In Parallel: 49.71 µH
- Inductance - Connected In Series: 198.8 µH
- Tolerance: ±25%
- Current Rating - Parallel: 1.56 A
- Current Rating - Series: 780 mA
- Current Saturation - Parallel: 1.32 A
- Current Saturation - Series: 660 mA
- DC Resistance (DCR) - Parallel: 171mOhm Max
- DC Resistance (DCR) - Series: 686mOhm Max
- Shielding: Unshielded
- Ratings: -
- Operating Temperature: -40°C ~ 85°C
- Mounting Type: Surface Mount
- Package / Case: Nonstandard
- Size / Dimension: 0.550" L x 0.550" W (13.97mm x 13.97mm)
- Height: 0.190" (4.83mm)
Related Products
COILCRAFT
MSD1278H-472MED
Signal Transformer
SCX147-5R0
Pulse Electronics Power
PF0553.334NLT
Bourns Inc.
PM3602-25-B-RC
Signal Transformer

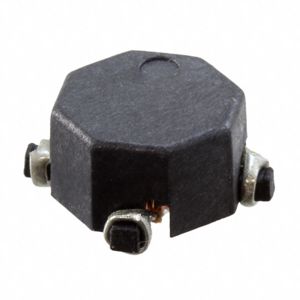

SCX114-8R0
