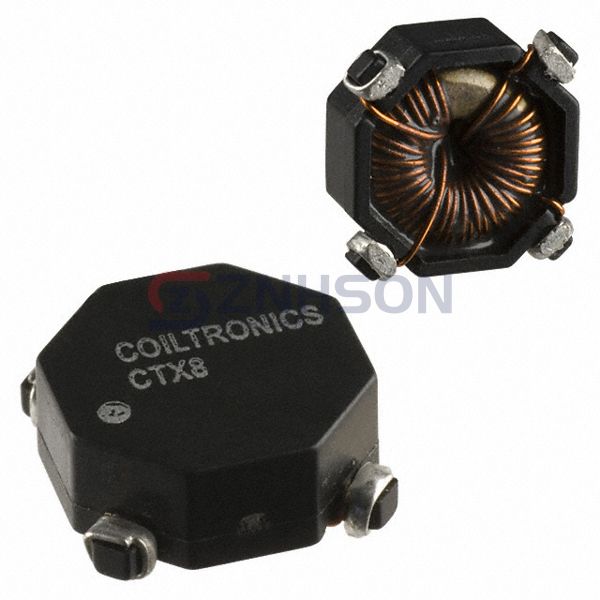

CTX8-3P-R
Eaton - Electronics Division
Eaton - Electronics Division
INDUCT ARRAY 2 COIL 8.16UH SMD
$2.80
Available to order
Reference Price (USD)
1+
$2.80225
500+
$2.7742275
1000+
$2.746205
1500+
$2.7181825
2000+
$2.69016
2500+
$2.6621375
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The CTX8-3P-R Eaton - Electronics Division Inductors, Coils, and Chokes are engineered to meet the highest industry standards. Our Arrays and Signal Transformers feature compact designs, high inductance values, and excellent thermal stability, suitable for consumer electronics and medical devices. Whether you need bulk orders or customized specifications, we ve got you covered. Don t hesitate request a quote today and experience top-tier quality!
Specifications
- Product Status: Active
- Number of Coils: 2
- Inductance - Connected In Parallel: 8.16 µH
- Inductance - Connected In Series: 32.63 µH
- Tolerance: ±20%
- Current Rating - Parallel: 2.8 A
- Current Rating - Series: 1.4 A
- Current Saturation - Parallel: -
- Current Saturation - Series: -
- DC Resistance (DCR) - Parallel: 30mOhm Max
- DC Resistance (DCR) - Series: 119mOhm Max
- Shielding: Unshielded
- Ratings: -
- Operating Temperature: -40°C ~ 85°C
- Mounting Type: Surface Mount
- Package / Case: Nonstandard
- Size / Dimension: 0.550" L x 0.550" W (13.97mm x 13.97mm)
- Height: 0.190" (4.83mm)
