CWN-350-14-0000
CW Industries
CW Industries

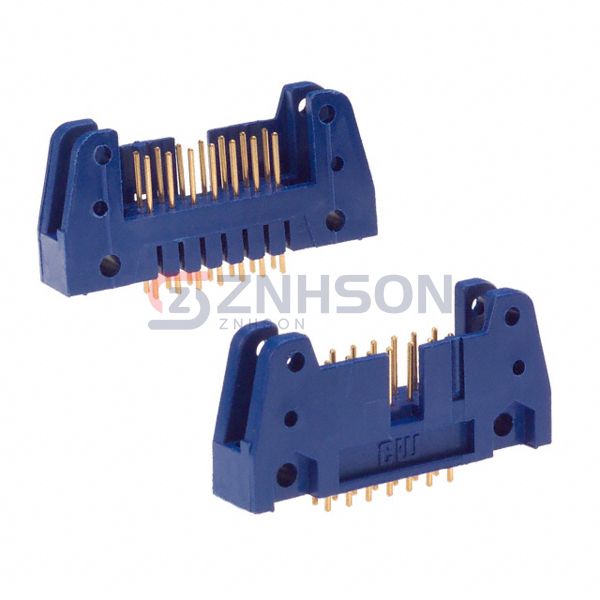

CONN HEADER VERT 14POS 2.54MM
$2.89
Available to order
Reference Price (USD)
1+
$2.48000
10+
$2.25400
100+
$1.93200
500+
$1.61000
1,000+
$1.38000
5,000+
$1.22360
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The CWN-350-14-0000 CW Industries Rectangular Connectors - Headers, Male Pins are designed for excellence in every connection. With features like polarized housings, vibration resistance, and RoHS compliance, they meet the highest industry standards. Suitable for LED lighting, HVAC systems, and more. Get yours today submit an inquiry now!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 14
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.240" (6.10mm)
- Contact Length - Post: 0.090" (2.29mm)
- Overall Contact Length: -
- Insulation Height: 0.681" (17.30mm)
- Contact Shape: Circular
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Nickel
- Contact Material: Phosphor Bronze
- Insulation Material: Thermoplastic
- Features: Keying Slot, Mounting Flange
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Blue
- Current Rating (Amps): 1A
- Voltage Rating: -
