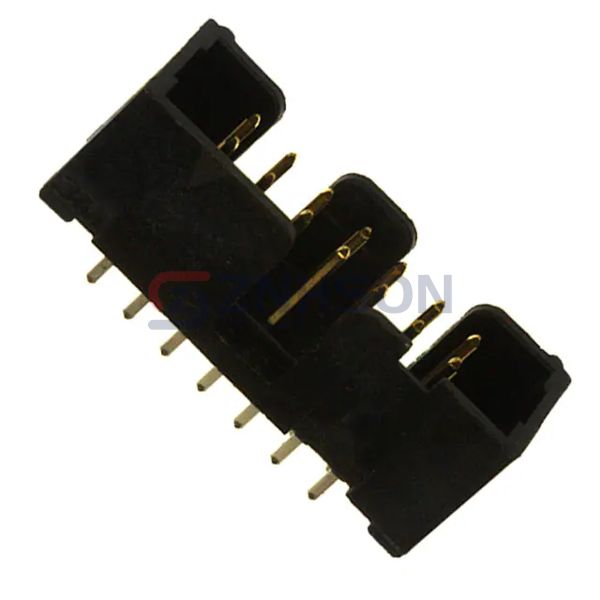

D2514-6002-AR

Manufacturer

Description:

CONN HEADER VERT 14POS 2.54MM

Datasheet:

D2514-6002-AR Datasheet

$2.28

Available to order

Reference Price (USD)

$1.68000

10+

$1.52900

100+

$1.31040

616+

$1.09200

1,232+

$0.93600

5,544+

$0.82992

10,472+

$0.81120

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

Boost your project's efficiency with D2514-6002-AR 3M Rectangular Connectors - Headers, Male Pins. These connectors ensure low insertion force, high mating cycles, and EMI shielding for superior performance. Ideal for medical equipment, robotics, and telecommunications. Need a quote? Contact us today and let s discuss your requirements!

Specifications

Product Status: Active
Connector Type: Header
Contact Type: Male Pin
Pitch - Mating: 0.100" (2.54mm)
Number of Positions: 14
Number of Rows: 2
Row Spacing - Mating: 0.100" (2.54mm)
Number of Positions Loaded: All
Style: Board to Cable/Wire
Shrouding: Shrouded - 4 Wall
Mounting Type: Through Hole
Termination: Solder
Fastening Type: Push-Pull
Contact Length - Mating: 0.243" (6.17mm)
Contact Length - Post: 0.112" (2.84mm)
Overall Contact Length: 0.492" (12.50mm)
Insulation Height: 0.253" (6.43mm)
Contact Shape: Square
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Tin
Contact Material: Brass
Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Features: Keying Slot
Operating Temperature: -55°C ~ 105°C
Ingress Protection: -
Material Flammability Rating: UL94 V-0
Insulation Color: Black
Current Rating (Amps): 1.75A
Voltage Rating: -
