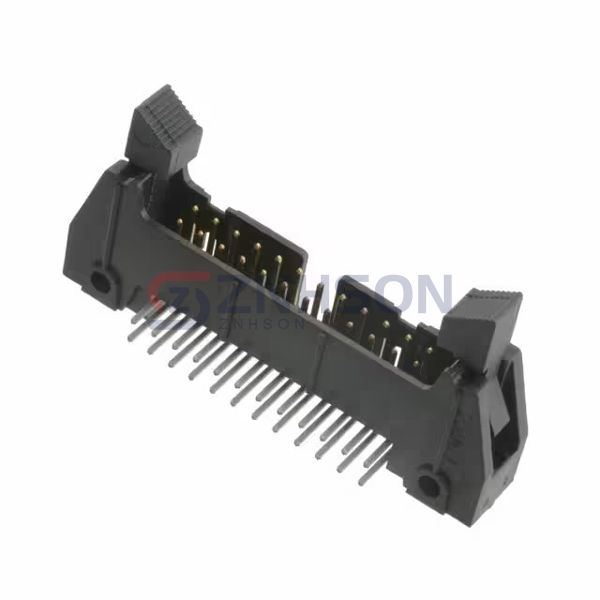

D3627-5202-AR

Manufacturer

Description:

CONN HEADER R/A 24POS 2.54MM

Datasheet:

D3627-5202-AR Datasheet

$1.96

Available to order

Reference Price (USD)

1,000+

$1.55150

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

Experience top-tier connectivity with D3627-5202-AR 3M Rectangular Connectors - Headers, Male Pins. These connectors offer superior signal integrity, easy assembly, and long-term reliability for diverse applications. Whether for automotive, industrial, or consumer electronics, 3M has you covered. Interested? Reach out to us for expert advice and competitive pricing!

Specifications

Product Status: Active
Connector Type: Header
Contact Type: Male Pin
Pitch - Mating: 0.100" (2.54mm)
Number of Positions: 24
Number of Rows: 2
Row Spacing - Mating: 0.100" (2.54mm)
Number of Positions Loaded: All
Style: Board to Cable/Wire
Shrouding: Shrouded - 4 Wall
Mounting Type: Through Hole, Right Angle
Termination: Solder
Fastening Type: Latch Lock/Eject Hooks, Short
Contact Length - Mating: 0.240" (6.10mm)
Contact Length - Post: 0.112" (2.84mm)
Overall Contact Length: -
Insulation Height: 0.340" (8.64mm)
Contact Shape: Square
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Tin
Contact Material: Brass
Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Features: Keying Slot, Mounting Flange
Operating Temperature: -55°C ~ 105°C
Ingress Protection: -
Material Flammability Rating: UL94 V-0
Insulation Color: Black
Current Rating (Amps): 1.75A
Voltage Rating: -
