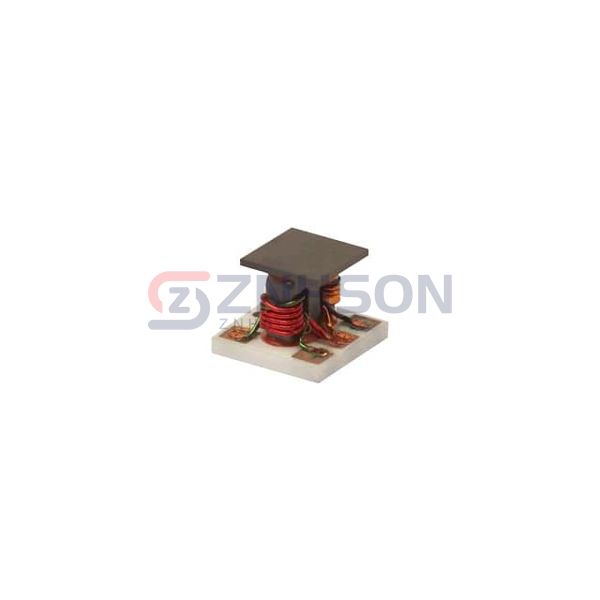

DBTC-16-5-75X+
Mini-Circuits
Mini-Circuits
RF DIR COUPLER 5MHZ-1.5GHZ 5SMD
$1.86
Available to order
Reference Price (USD)
1+
$1.86250
500+
$1.843875
1000+
$1.82525
1500+
$1.806625
2000+
$1.788
2500+
$1.769375
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Maximize your system's RF performance with Mini-Circuits's DBTC-16-5-75X+ high-directivity couplers. These units provide precise 20-30dB coupling factors with outstanding amplitude balance for phase-sensitive applications. The stainless steel housing offers superior corrosion resistance in marine environments. Commonly deployed in quantum computing research and medical imaging systems. Custom frequency ranges available upon request. Email our engineering team for application notes and design-in support.
Specifications
- Product Status: Active
- Coupler Type: Standard
- Frequency: 5MHz ~ 1.5GHz
- Coupling Factor: 16.8 ± 0.7dB
- Applications: Cellular
- Insertion Loss: -
- Power - Max: 1W
- Isolation: -
- Return Loss: 25.41dB
- Package / Case: 5-SMD Module
- Supplier Device Package: -
