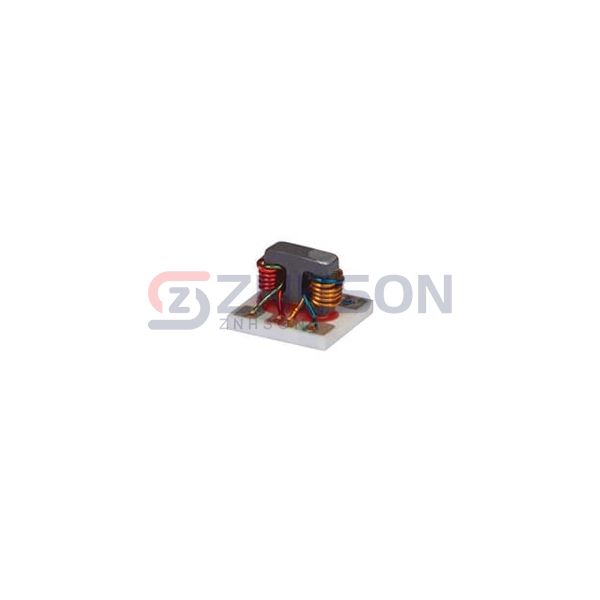

DBTC-20-4+
Mini-Circuits
Mini-Circuits
RF DIR COUPLER 20MHZ-1GHZ 5SMD
$1.86
Available to order
Reference Price (USD)
1+
$1.86250
500+
$1.843875
1000+
$1.82525
1500+
$1.806625
2000+
$1.788
2500+
$1.769375
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The DBTC-20-4+ from Mini-Circuits delivers military-spec performance in commercial RF Directional Couplers. With <0.3dB insertion loss and >23dB isolation across the band, these components are trusted by defense contractors and telecom operators alike. The flange-mount design simplifies heat dissipation in high-power scenarios. Applications include ECM systems, broadcast transmitters, and scientific research equipment. Ask about our qualification testing reports and RoHS/REACH compliance documentation.
Specifications
- Product Status: Active
- Coupler Type: Standard
- Frequency: 20MHz ~ 1GHz
- Coupling Factor: 20.4 ± 0.5dB
- Applications: Cellular
- Insertion Loss: -
- Power - Max: 1W
- Isolation: -
- Return Loss: 31.8dB
- Package / Case: 5-SMD Module
- Supplier Device Package: -
