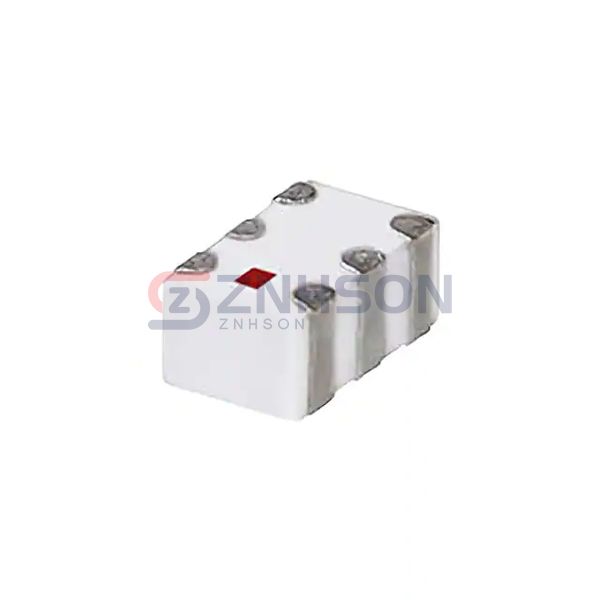

DCW-22-332+
Mini-Circuits
Mini-Circuits
RF DIR CPLR 1.2GHZ-3.3GHZ 0603
$4.90
Available to order
Reference Price (USD)
1+
$4.90000
500+
$4.851
1000+
$4.802
1500+
$4.753
2000+
$4.704
2500+
$4.655
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Maximize your system's RF performance with Mini-Circuits's DCW-22-332+ high-directivity couplers. These units provide precise 20-30dB coupling factors with outstanding amplitude balance for phase-sensitive applications. The stainless steel housing offers superior corrosion resistance in marine environments. Commonly deployed in quantum computing research and medical imaging systems. Custom frequency ranges available upon request. Email our engineering team for application notes and design-in support.
Specifications
- Product Status: Active
- Coupler Type: Standard
- Frequency: 1.2GHz ~ 3.3GHz
- Coupling Factor: 22 ± 2dB
- Applications: PCS, LTE, ISM, UMTS, WiMAX, Wi-Fi
- Insertion Loss: -
- Power - Max: 2W
- Isolation: -
- Return Loss: 23dB
- Package / Case: 0603 (1608 Metric), 4 PC Pad
- Supplier Device Package: 0603
