DCX114EU-7
Diodes Incorporated
Diodes Incorporated
TRANS NPN/PNP PREBIAS SOT363
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Introducing Diodes Incorporated's DCX114EU-7 advanced Pre-Biased Transistor Arrays engineered for modern electronics. These BJT arrays provide ready-to-use solutions with internal resistor networks, significantly reducing design complexity and BOM costs. Application highlights include power supply circuits, display drivers, and microcontroller interfaces in automotive, aerospace, and industrial environments. Technical features comprise low VCE(sat), tight current gain matching, and RoHS compliance for environmental safety. Diodes Incorporated stands behind every DCX114EU-7 unit with rigorous quality testing. Streamline your procurement process contact our sales team via the inquiry form for personalized assistance!
Specifications
- Product Status: Discontinued at Digi-Key
- Transistor Type: 1 NPN, 1 PNP - Pre-Biased (Dual)
- Current - Collector (Ic) (Max): 100mA
- Voltage - Collector Emitter Breakdown (Max): 50V
- Resistor - Base (R1): 10kOhms
- Resistor - Emitter Base (R2): 10kOhms
- DC Current Gain (hFE) (Min) @ Ic, Vce: 30 @ 5mA, 5V
- Vce Saturation (Max) @ Ib, Ic: 300mV @ 500µA, 10mA
- Current - Collector Cutoff (Max): 500nA
- Frequency - Transition: 250MHz
- Power - Max: 200mW
- Mounting Type: Surface Mount
- Package / Case: 6-TSSOP, SC-88, SOT-363
- Supplier Device Package: SOT-363
Related Products
Infineon Technologies
BCR135SE6327BTSA1
Panasonic Electronic Components
NP061A300A
Panasonic Electronic Components
UP0421000L
Panasonic Electronic Components

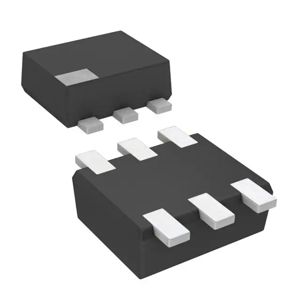

NP043A300A
Panasonic Electronic Components
DMG964020R
Diodes Incorporated

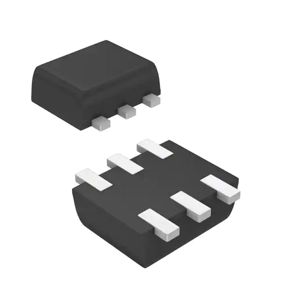

DDC122LH-7
