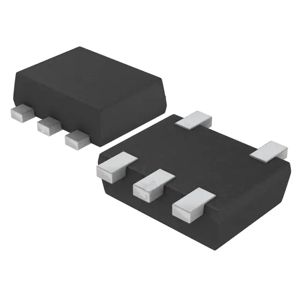

DDC114TH-7
Diodes Incorporated
Diodes Incorporated
TRANS 2NPN PREBIAS 0.15W SOT563
$0.10
Available to order
Reference Price (USD)
3,000+
$0.10450
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Diodes Incorporated's DDC114TH-7 represents the next generation of Pre-Biased Bipolar Transistor Arrays, combining efficiency with compact design. These surface-mount compatible components feature integrated bias networks that reduce part count while improving system reliability. Ideal applications encompass power management, sensor interfaces, and digital circuit amplification in medical equipment, robotics, and smart home systems. Notable advantages include consistent hFE matching, reduced board space requirements, and simplified inventory management. As a leading supplier of discrete semiconductors, Diodes Incorporated guarantees quality and performance. Get competitive quotes and lead times inquire about DDC114TH-7 now!
Specifications
- Product Status: Active
- Transistor Type: 2 NPN - Pre-Biased (Dual)
- Current - Collector (Ic) (Max): 100mA
- Voltage - Collector Emitter Breakdown (Max): 50V
- Resistor - Base (R1): 10kOhms
- Resistor - Emitter Base (R2): -
- DC Current Gain (hFE) (Min) @ Ic, Vce: 100 @ 1mA, 5V
- Vce Saturation (Max) @ Ib, Ic: 300mV @ 100µA, 1mA
- Current - Collector Cutoff (Max): -
- Frequency - Transition: 250MHz
- Power - Max: 150mW
- Mounting Type: Surface Mount
- Package / Case: SOT-563, SOT-666
- Supplier Device Package: SOT-563
