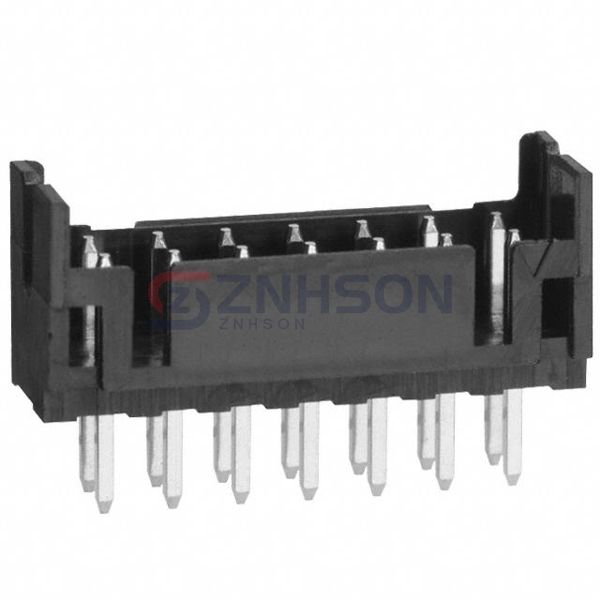

DF11-14DP-2DSA(24)
Hirose Electric Co Ltd
Hirose Electric Co Ltd
CONN HEADER VERT 14POS 2MM
$0.77
Available to order
Reference Price (USD)
1+
$0.64000
30+
$0.54000
120+
$0.46000
510+
$0.40000
1,020+
$0.33000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The DF11-14DP-2DSA(24) Hirose Electric Co Ltd Rectangular Connectors - Headers, Male Pins deliver precision and reliability for all your connectivity needs. Featuring gold-plated contacts, high-density layouts, and rugged housings, they excel in harsh environments. Perfect for military, automotive, and renewable energy applications. Let us help you find the right connector inquire now!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 14
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Detent Lock
- Contact Length - Mating: 0.118" (3.00mm)
- Contact Length - Post: 0.118" (3.00mm)
- Overall Contact Length: 0.299" (7.60mm)
- Insulation Height: 0.260" (6.60mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 39.4µin (1.00µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA), Nylon
- Features: -
- Operating Temperature: -30°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2A
- Voltage Rating: 250V
