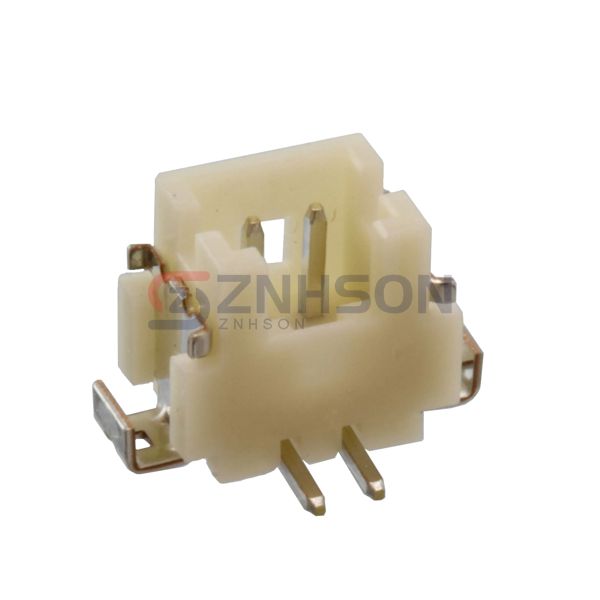

DF13B-2P-1.25V(21)
Hirose Electric Co Ltd
Hirose Electric Co Ltd
CONN HEADER SMD 2POS 1.25MM
$0.42
Available to order
Reference Price (USD)
1,000+
$0.22225
2,000+
$0.21082
3,000+
$0.20320
5,000+
$0.19050
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The DF13B-2P-1.25V(21) Hirose Electric Co Ltd Rectangular Connectors - Headers, Male Pins are the perfect choice for high-performance electronic connections. Designed for durability and efficiency, they support a wide range of applications, from automotive to IoT devices. Experience the Hirose Electric Co Ltd difference today. Contact us for more details and a customized solution!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.049" (1.25mm)
- Number of Positions: 2
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 3 Wall
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Detent Lock
- Contact Length - Mating: -
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.189" (4.80mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 39.4µin (1.00µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA), Nylon
- Features: Board Guide, Solder Retention
- Operating Temperature: -35°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Beige
- Current Rating (Amps): 1A
- Voltage Rating: 150V
Related Products
Amphenol ICC (FCI)
86130102114345E1LF
Samtec Inc.
TSM-104-02-L-SV-A-P-TR
Samtec Inc.
BBS-130-G-G
Molex
1053122108
Sullins Connector Solutions
PBC03SFBN
Preci-Dip
892-18-078-10-001101
Samtec Inc.

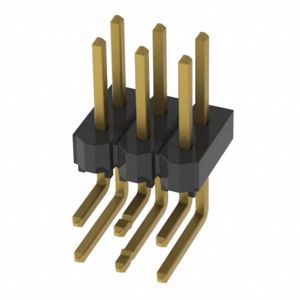

HTSW-103-08-G-D-LA
