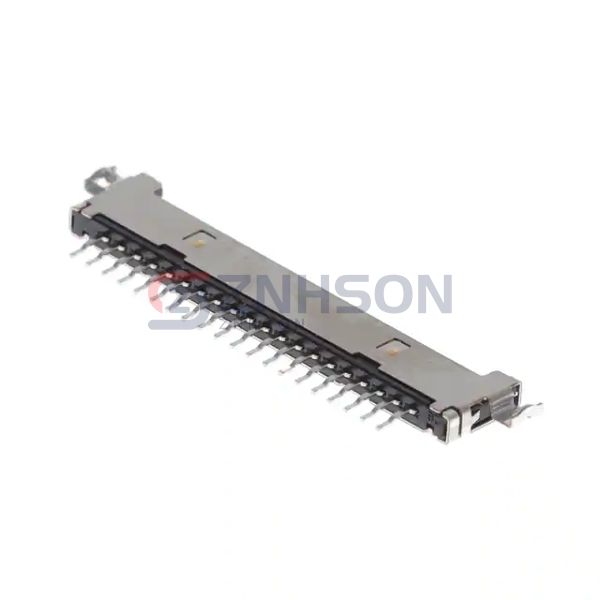

DF19KR-20P-1H(52)
Hirose Electric Co Ltd
Hirose Electric Co Ltd
CONN HEADER BRD EDGE 20P 1MM
$1.47
Available to order
Reference Price (USD)
1+
$1.47000
500+
$1.4553
1000+
$1.4406
1500+
$1.4259
2000+
$1.4112
2500+
$1.3965
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Maximize your device's potential with DF19KR-20P-1H(52) Hirose Electric Co Ltd Rectangular Connectors - Headers, Male Pins. These connectors provide excellent electrical performance, secure locking mechanisms, and space-saving designs. Suitable for industrial machinery, consumer electronics, and more. Ready to order? Send us your inquiry and we'll respond swiftly!
Specifications
- Product Status: Active
- Connector Type: Receptacle, Reverse Pin
- Contact Type: Male Pin
- Pitch - Mating: 0.039" (1.00mm)
- Number of Positions: 20
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 3 Wall
- Mounting Type: Board Edge, Cutout; Surface Mount, Right Angle
- Termination: Solder
- Fastening Type: Friction Lock
- Contact Length - Mating: -
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.057" (1.45mm)
- Contact Shape: -
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 3.94µin (0.100µm)
- Contact Finish - Post: Gold
- Contact Material: Phosphor Bronze
- Insulation Material: Polyamide (PA), Nylon
- Features: Solder Retention
- Operating Temperature: -35°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): Varies by Wire Gauge
- Voltage Rating: 100VAC
