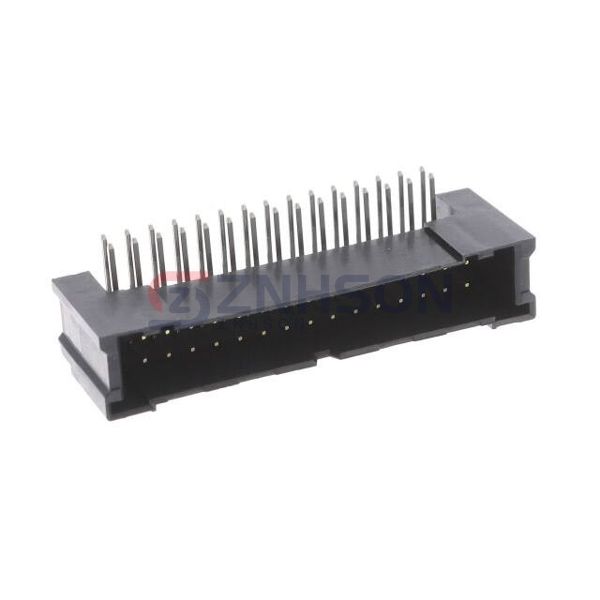

DF51A-30DP-2DS(20)
Hirose Electric Co Ltd
Hirose Electric Co Ltd
CONN HDR 2MM 30POS R/A TIN
$2.01
Available to order
Reference Price (USD)
1+
$2.01000
500+
$1.9899
1000+
$1.9698
1500+
$1.9497
2000+
$1.9296
2500+
$1.9095
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Ensure seamless connectivity with DF51A-30DP-2DS(20) Hirose Electric Co Ltd Rectangular Connectors - Headers, Male Pins. These connectors are built to last, featuring robust contacts, compact design, and versatile mounting options. Ideal for data communication, power supply, and control systems. Don't compromise on quality reach out to us now for your connector requirements!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 30
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Detent Lock
- Contact Length - Mating: -
- Contact Length - Post: 0.118" (3.00mm)
- Overall Contact Length: -
- Insulation Height: 0.287" (7.30mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 39.4µin (1.00µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polybutylene Terephthalate (PBT), Glass Filled
- Features: -
- Operating Temperature: -55°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): Varies by Wire Gauge
- Voltage Rating: 30VAC/DC
Related Products
Preci-Dip
800-80-059-30-001101
Harwin Inc.
M22-2021405
Samtec Inc.
TSM-107-01-L-DV-A-012-P
Samtec Inc.
ZSS-125-01-L-D-472
Samtec Inc.
TSW-103-15-G-S
Sullins Connector Solutions
GRPB331VWCN-RC
Samtec Inc.
TMM-111-05-L-D-SM-A
Samtec Inc.

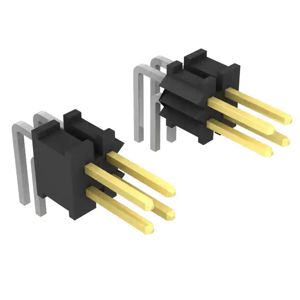

FTSH-110-04-F-D-RA
