DG409DY-E3
Vishay Siliconix
Vishay Siliconix
IC MUX CMOS ANG DUAL 8CH 16SOIC
$4.04
Available to order
Reference Price (USD)
1+
$3.31000
10+
$2.97500
25+
$2.81240
100+
$2.43750
250+
$2.31252
500+
$2.07500
1,000+
$1.75000
2,500+
$1.66250
5,000+
$1.60000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The Vishay Siliconix DG409DY-E3 series of Analog Switches, Multiplexers, and Demultiplexers offers precision and reliability for critical signal routing tasks. Ideal for automotive, aerospace, and telecommunications applications, these ICs ensure low on-resistance and high bandwidth performance. Simplify your circuit design with our robust Interface solutions. For pricing and availability, reach out to our sales team today and experience the Vishay Siliconix difference.
Specifications
- Product Status: Active
- Switch Circuit: SP4T
- Multiplexer/Demultiplexer Circuit: 4:1
- Number of Circuits: 2
- On-State Resistance (Max): 100Ohm
- Channel-to-Channel Matching (ΔRon): 15Ohm (Max)
- Voltage - Supply, Single (V+): 5V ~ 36V
- Voltage - Supply, Dual (V±): ±5V ~ 20V
- Switch Time (Ton, Toff) (Max): 150ns, 150ns
- -3db Bandwidth: -
- Charge Injection: 20pC
- Channel Capacitance (CS(off), CD(off)): 14pF, 25pF
- Current - Leakage (IS(off)) (Max): 500pA
- Crosstalk: -
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 16-SOIC (0.154", 3.90mm Width)
- Supplier Device Package: 16-SOIC
Related Products
Analog Devices Inc./Maxim Integrated
MAX4521ESE+T
Analog Devices Inc./Maxim Integrated
MAX393CPE+
Analog Devices Inc./Maxim Integrated
MAX4537CPE
Analog Devices Inc.
ADG702LBRM
Harris Corporation
HI3-0508-5
Analog Devices Inc.
ADG702BRT-REEL7
Analog Devices Inc./Maxim Integrated
MAX4613CUE+T
Analog Devices Inc.
AD7512DIJP
Analog Devices Inc./Maxim Integrated

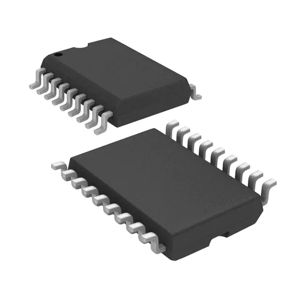

DG528CWN+
