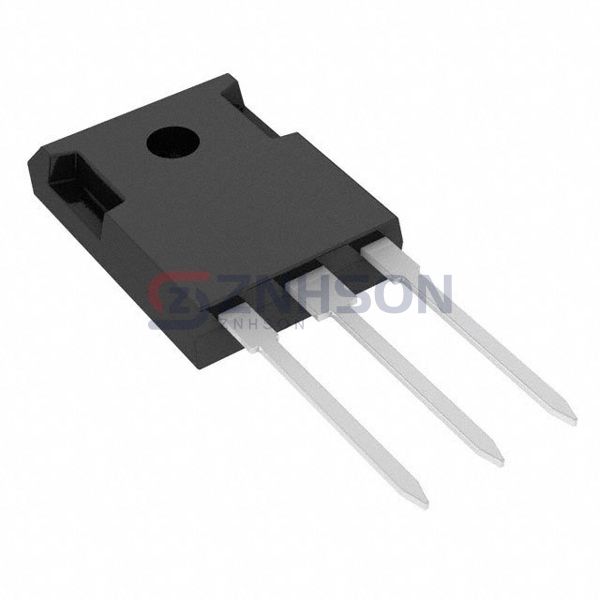

DGTD120T40S1PT
Diodes Incorporated
Diodes Incorporated
IGBT 1200V-X TO247 TUBE 0.45K
$6.70
Available to order
Reference Price (USD)
450+
$6.69938
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The DGTD120T40S1PT Single IGBT from Diodes Incorporated delivers unmatched performance in power conversion and control. Ideal for UPS systems, induction heating, and industrial automation, this transistor combines high efficiency with rugged reliability. Features such as short-circuit protection and low EMI make it a standout choice. Diodes Incorporated's commitment to innovation ensures DGTD120T40S1PT meets the demands of modern electronics. Get in touch for bulk orders and customization options!
Specifications
- Product Status: Last Time Buy
- IGBT Type: Field Stop
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 80 A
- Current - Collector Pulsed (Icm): 160 A
- Vce(on) (Max) @ Vge, Ic: 2.4V @ 15V, 40A
- Power - Max: 357 W
- Switching Energy: 1.96mJ (on), 540µJ (off)
- Input Type: Standard
- Gate Charge: 341 nC
- Td (on/off) @ 25°C: 65ns/308ns
- Test Condition: 600V, 40A, 10Ohm, 15V
- Reverse Recovery Time (trr): 100 ns
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-247-3
- Supplier Device Package: TO-247
