DMC561030R
Panasonic Electronic Components
Panasonic Electronic Components
TRANS 2NPN PREBIAS 0.15W SMINI5
$0.00
Available to order
Reference Price (USD)
3,000+
$0.08631
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your circuit designs with Panasonic Electronic Components's DMC561030R Pre-Biased BJT Arrays the perfect solution for space-constrained applications. These discrete semiconductor products deliver optimized performance with built-in bias resistors, simplifying your PCB layout while ensuring stable operation. Key features include high current gain, low leakage current, and excellent temperature characteristics. Widely used in LED drivers, interface circuits, and logic level conversion across telecom, automation, and IoT devices. Trust Panasonic Electronic Components's expertise in transistor technology for your next project. Ready to order or need technical support? Send us your inquiry today!
Specifications
- Product Status: Discontinued at Digi-Key
- Transistor Type: 2 NPN - Pre-Biased (Dual) (Emitter Coupled)
- Current - Collector (Ic) (Max): 100mA
- Voltage - Collector Emitter Breakdown (Max): 50V
- Resistor - Base (R1): 47kOhms
- Resistor - Emitter Base (R2): 47kOhms
- DC Current Gain (hFE) (Min) @ Ic, Vce: 80 @ 5mA, 10V
- Vce Saturation (Max) @ Ib, Ic: 250mV @ 500µA, 10mA
- Current - Collector Cutoff (Max): 500nA
- Frequency - Transition: -
- Power - Max: 150mW
- Mounting Type: Surface Mount
- Package / Case: 6-SMD (5 Leads), Flat Lead
- Supplier Device Package: SMini5-F3-B
Related Products
Panasonic Electronic Components
DMA964070R
Rohm Semiconductor
UMC3NTR
Panasonic Electronic Components
DMC2640F0R
Diodes Incorporated
EMF21-7
Panasonic Electronic Components
DMC264010R
Panasonic Electronic Components

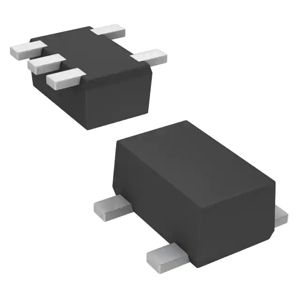

UP0121MG0L
Diodes Incorporated

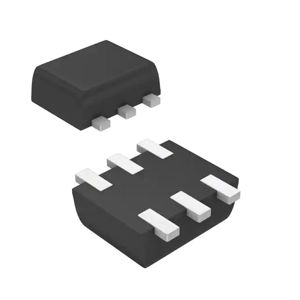

DCX142JH-7
Panasonic Electronic Components

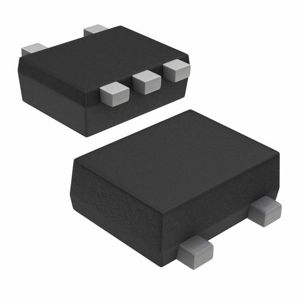

DMC961020R
onsemi

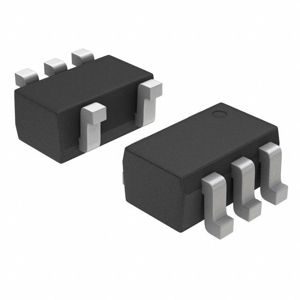

UMC2NT1
