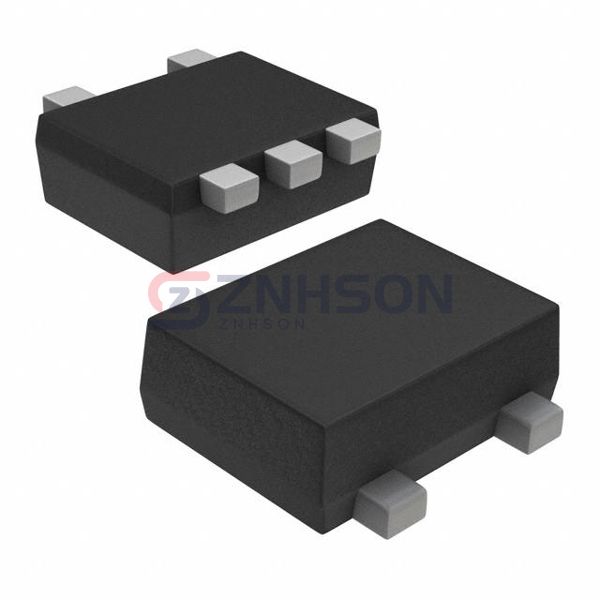

DMG963HE0R
Panasonic Electronic Components
Panasonic Electronic Components
TRANS PREBIAS NPN/PNP SSMINI5
$0.00
Available to order
Reference Price (USD)
8,000+
$0.24517
16,000+
$0.23040
24,000+
$0.22793
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Experience precision engineering with Panasonic Electronic Components's DMG963HE0R Bipolar Junction Transistor Arrays, the optimal solution for space-efficient designs. These pre-biased components eliminate external resistor needs while providing predictable performance in amplification and switching roles. Application sectors include automotive electronics, power tools, and renewable energy systems where reliability is paramount. The product family offers multiple configuration options, all featuring low quiescent current, high gain bandwidth product, and robust EMC performance. Panasonic Electronic Components provides comprehensive technical resources for DMG963HE0R integration. Take the next step request a quote or design consultation through our convenient inquiry portal!
Specifications
- Product Status: Discontinued at Digi-Key
- Transistor Type: 1 NPN, 1 PNP - Pre-Biased (Dual)
- Current - Collector (Ic) (Max): 100mA
- Voltage - Collector Emitter Breakdown (Max): 50V, 30V
- Resistor - Base (R1): 10kOhms
- Resistor - Emitter Base (R2): 10kOhms, 47kOhms
- DC Current Gain (hFE) (Min) @ Ic, Vce: 35 @ 5mA, 10V / 80 @ 5mA, 10V
- Vce Saturation (Max) @ Ib, Ic: 250mV @ 500µA, 10mA / 1.2V @ 330µA, 50mA
- Current - Collector Cutoff (Max): 500nA
- Frequency - Transition: -
- Power - Max: 125mW
- Mounting Type: Surface Mount
- Package / Case: SOT-665
- Supplier Device Package: SSMini5-F4-B
