DMN2300U-7
Diodes Incorporated
Diodes Incorporated
MOSFET N-CH 20V 1.24A SOT23
$0.50
Available to order
Reference Price (USD)
3,000+
$0.15113
6,000+
$0.14288
15,000+
$0.13463
30,000+
$0.12473
75,000+
$0.12060
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Diodes Incorporated presents DMN2300U-7, a high-performance Transistors - FETs, MOSFETs - Single in the Discrete Semiconductor Products category. Designed for efficiency, this component features minimal conduction losses and superior thermal performance, making it ideal for high-frequency applications. From industrial automation to smart home devices, DMN2300U-7 delivers unmatched reliability. Get in touch today for technical specifications and purchasing options!
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 20 V
- Current - Continuous Drain (Id) @ 25°C: 1.24A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 1.8V, 4.5V
- Rds On (Max) @ Id, Vgs: 175mOhm @ 300mA, 4.5V
- Vgs(th) (Max) @ Id: 950mV @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 1.6 nC @ 4.5 V
- Vgs (Max): ±8V
- Input Capacitance (Ciss) (Max) @ Vds: 64.3 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 430mW (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: SOT-23-3
- Package / Case: TO-236-3, SC-59, SOT-23-3
Related Products
STMicroelectronics
STD3NK80ZT4
Nexperia USA Inc.

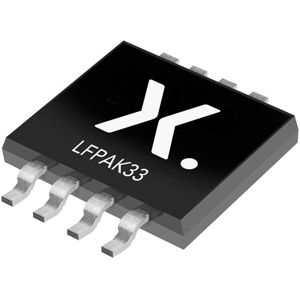

BUK9M85-60EX
Vishay Siliconix

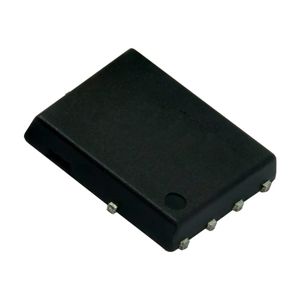

SIR880BDP-T1-RE3
Vishay Siliconix

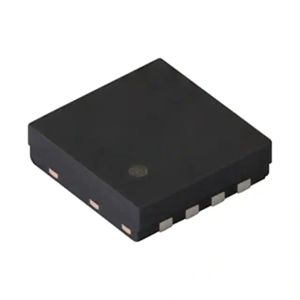

SQS141ELNW-T1_GE3
Vishay Siliconix

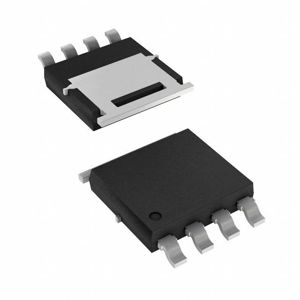

SIJ478DP-T1-GE3
Vishay Siliconix

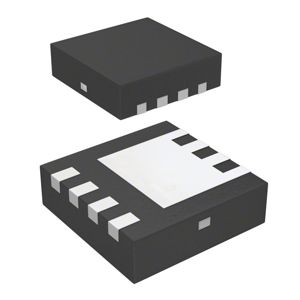

SISH410DN-T1-GE3
STMicroelectronics

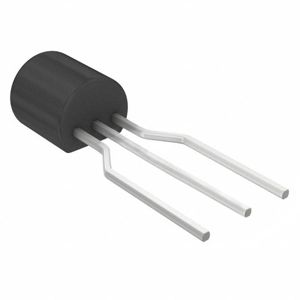

STQ1NC45R-AP
Yangzhou Yangjie Electronic Technology Co.,Ltd

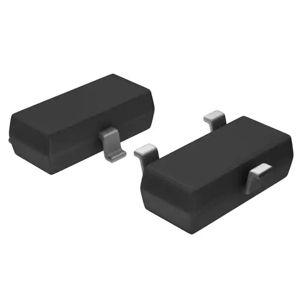

BSS123-F2-0000HF
