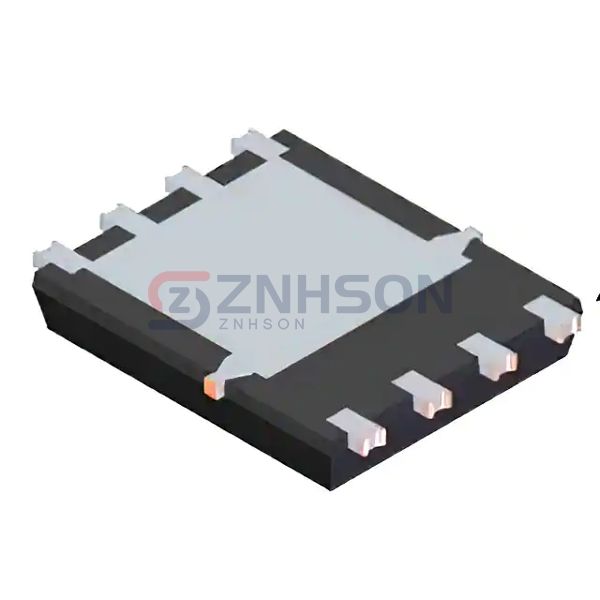

DMTH47M2SPSWQ-13
Diodes Incorporated
Diodes Incorporated
MOSFET BVDSS: 31V~40V POWERDI506
$0.33
Available to order
Reference Price (USD)
1+
$0.33495
500+
$0.3316005
1000+
$0.328251
1500+
$0.3249015
2000+
$0.321552
2500+
$0.3182025
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with DMTH47M2SPSWQ-13 by Diodes Incorporated, a top-tier choice in Discrete Semiconductor Products. Specifically crafted for Transistors - FETs, MOSFETs - Single applications, this product offers superior power handling and energy efficiency. Key features include high voltage tolerance, minimal power loss, and robust durability, making it perfect for switching and amplification tasks. Whether for industrial machinery, renewable energy systems, or portable devices, DMTH47M2SPSWQ-13 ensures reliable operation. Ready to integrate this component into your project? Submit an inquiry now for pricing and availability!
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 40 V
- Current - Continuous Drain (Id) @ 25°C: 73A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 7.5mOhm @ 20A, 10V
- Vgs(th) (Max) @ Id: 4V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 12.1 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 897 pF @ 20 V
- FET Feature: -
- Power Dissipation (Max): 3.3W (Ta), 68W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount, Wettable Flank
- Supplier Device Package: PowerDI5060-8 (Type UX)
- Package / Case: 8-PowerTDFN
Related Products
Vishay Siliconix
SQJA68EP-T1_GE3
Alpha & Omega Semiconductor Inc.
AO4290A
STMicroelectronics
STP1N105K3
STMicroelectronics
STL26N60DM6
Diodes Incorporated
ZXMN6A25GTA
Vishay Siliconix
SUD09P10-195-GE3
Vishay Siliconix
SQD30N05-20L_GE3

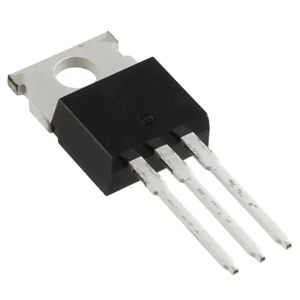

Toshiba Semiconductor and Storage
TK14E65W,S1X

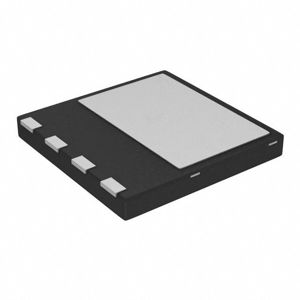

Infineon Technologies
