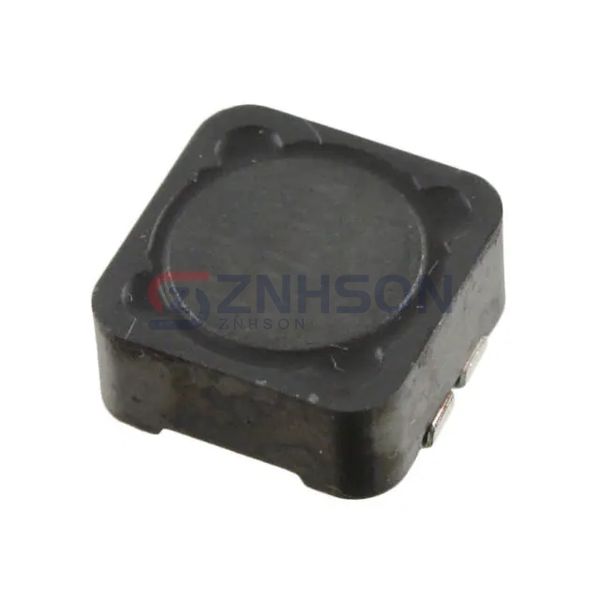

DRQ125-220-R
Eaton - Electronics Division
Eaton - Electronics Division
INDUCT ARRAY 2 COIL 22.36UH SMD
$1.62
Available to order
Reference Price (USD)
1+
$1.62000
500+
$1.6038
1000+
$1.5876
1500+
$1.5714
2000+
$1.5552
2500+
$1.539
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The DRQ125-220-R Eaton - Electronics Division Inductors, Coils, and Chokes are engineered to meet the highest industry standards. Our Arrays and Signal Transformers feature compact designs, high inductance values, and excellent thermal stability, suitable for consumer electronics and medical devices. Whether you need bulk orders or customized specifications, we ve got you covered. Don t hesitate request a quote today and experience top-tier quality!
Specifications
- Product Status: Active
- Number of Coils: 2
- Inductance - Connected In Parallel: 22.36 µH
- Inductance - Connected In Series: 89.44 µH
- Tolerance: ±20%
- Current Rating - Parallel: 3.7 A
- Current Rating - Series: 1.84 A
- Current Saturation - Parallel: 4.71 A
- Current Saturation - Series: 2.36 A
- DC Resistance (DCR) - Parallel: 39.6mOhm
- DC Resistance (DCR) - Series: 159mOhm
- Shielding: Shielded
- Ratings: -
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: Nonstandard
- Size / Dimension: 0.492" L x 0.492" W (12.50mm x 12.50mm)
- Height: 0.236" (6.00mm)
