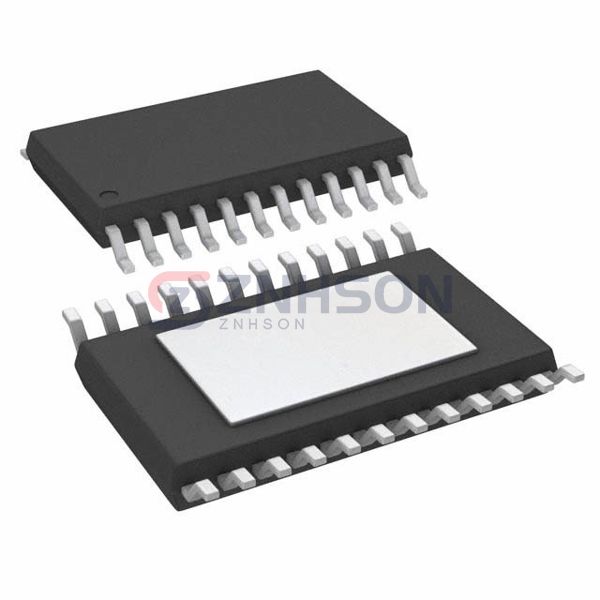

DRV8906QPWPRQ1
Texas Instruments
Texas Instruments
AUTO MULTI-CHANNEL HALF BRIDGER
$3.71
Available to order
Reference Price (USD)
1+
$3.71000
500+
$3.6729
1000+
$3.6358
1500+
$3.5987
2000+
$3.5616
2500+
$3.5245
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The Texas Instruments DRV8906QPWPRQ1 series offers versatile full/half-bridge driver solutions for modern power electronics. Featuring dual MOSFET gate drivers with independent inputs, these PMICs provide exceptional flexibility in motor control and switched-mode power supply designs. Advanced protection mechanisms include undervoltage lockout and thermal shutdown, while the high-current drive capability ensures efficient switching of power transistors. Suitable for industrial, automotive, and consumer applications. Request technical documentation or samples through our quick inquiry form.
Specifications
- Product Status: Active
- Output Configuration: Half Bridge (6)
- Applications: DC Motors, General Purpose
- Interface: Logic, PWM, SPI
- Load Type: Inductive, Capacitive, Resistive
- Technology: MOSFET (Metal Oxide)
- Rds On (Typ): 750mOhm LS, 750mOhm HS
- Current - Output / Channel: 6A
- Current - Peak Output: -
- Voltage - Supply: 3V ~ 5.5V
- Voltage - Load: 3V ~ 5.5V
- Operating Temperature: -40°C ~ 150°C (TJ)
- Features: Charge Pump, Slew Rate Controlled
- Fault Protection: Over Current, Over Voltage, UVLO
- Mounting Type: Surface Mount
- Package / Case: 24-TSSOP (0.173", 4.40mm Width) Exposed Pad
- Supplier Device Package: 24-HTSSOP
