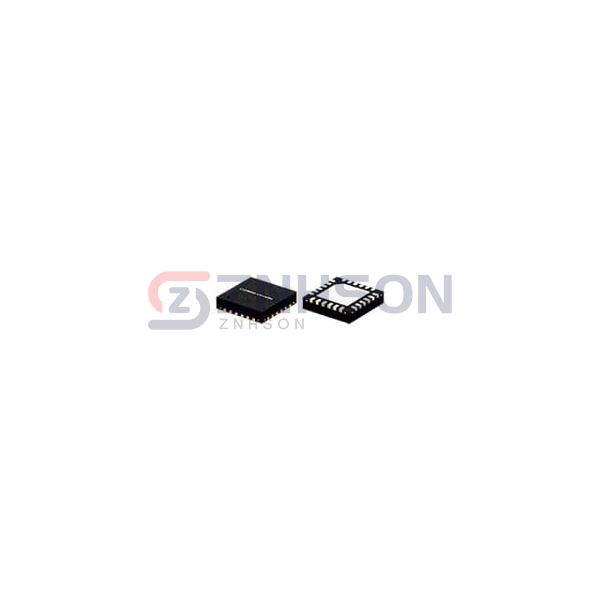

EDC21-24+
Mini-Circuits
Mini-Circuits
RF DIR CPLR 4GHZ-20GHZ 24VFQFN
$35.16
Available to order
Reference Price (USD)
1+
$35.16000
500+
$34.8084
1000+
$34.4568
1500+
$34.1052
2000+
$33.7536
2500+
$33.402
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Mini-Circuits's EDC21-24+ series redefines compact directional coupler technology with hybrid coupler capabilities. The innovative LTCC manufacturing process yields exceptional performance up to 40GHz. Perfect for mmWave applications, autonomous vehicle radars, and 6G research prototypes. Each unit comes with detailed S-parameter characterization data. Volume production with full traceability available. Click 'Request Quote' to discuss your project's technical requirements with our RF specialists.
Specifications
- Product Status: Active
- Coupler Type: Standard
- Frequency: 4GHz ~ 20GHz
- Coupling Factor: 21 ± 2dB
- Applications: General Purpose
- Insertion Loss: -
- Power - Max: -
- Isolation: -
- Return Loss: 26dB
- Package / Case: 24-VFQFN Exposed Pad
- Supplier Device Package: -
