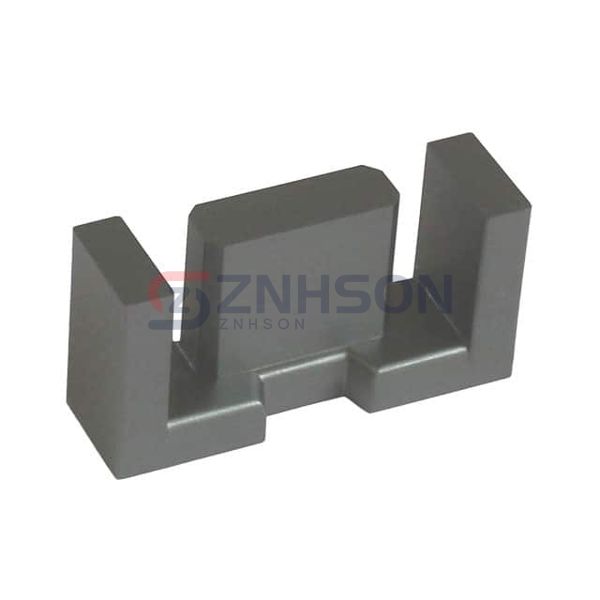

EFD10/5/3-3F46-S
Ferroxcube
Ferroxcube
FERRITE CORE 2PC SET
$1.98
Available to order
Reference Price (USD)
1+
$1.62000
10+
$1.39600
25+
$1.06080
50+
$1.00480
100+
$0.89320
250+
$0.83740
500+
$0.78156
1,000+
$0.71736
5,000+
$0.69783
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your electronic systems with Ferroxcube EFD10/5/3-3F46-S Ferrite Cores, designed to deliver superior magnetic performance and durability. These cores are widely used in power conversion, signal processing, and noise filtering applications. Their high-frequency capabilities and thermal resilience make them ideal for advanced electronics. Whether for IoT devices or automotive applications, our Ferrite Cores stand out. Request a consultation with our experts to find the best solution for your needs!
Specifications
- Product Status: Active
- Core Type: EFD
- Supplier Device Package: EFD 10 x 5 x 3
- Material: 3F46
- Diameter: -
- Inductance Factor (Al): -
- Tolerance: ±25%
- Gap: Ungapped
- Effective Permeability (µe): 655
- Initial Permeability (µi): -
- Core Factor (ΣI/A) mm-1: 3.29
- Effective Length (le) mm: 23.7
- Effective Area (Ae) mm²: 7.2
- Minimum Core Cross Section (Amin) mm²: 6.5
- Effective Magnetic Volume (Ve) mm³: 171
- Finish: Uncoated
- Height: 0.205" (5.20mm)
- Length: 0.413" (10.50mm)
- Width: 0.106" (2.70mm)
