EGUARD0504F
SMC Diode Solutions
SMC Diode Solutions

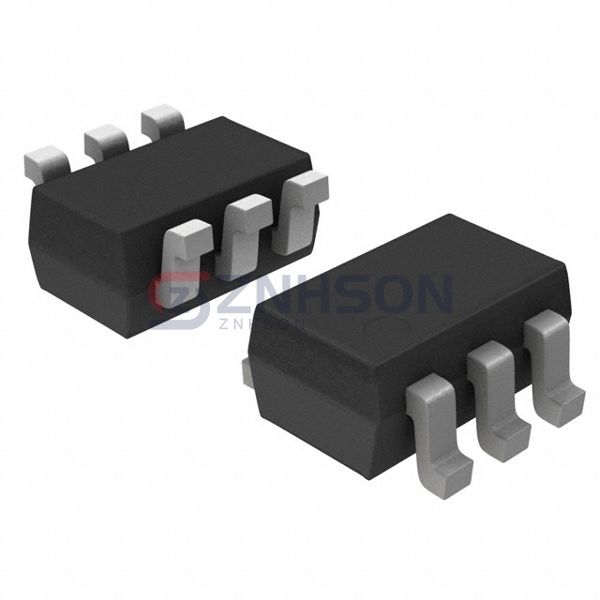

TVS DIODE 5VWM 25VC SOT363
$1.64
Available to order
Reference Price (USD)
1+
$1.64000
500+
$1.6236
1000+
$1.6072
1500+
$1.5908
2000+
$1.5744
2500+
$1.558
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Protect your circuits effortlessly with SMC Diode Solutions's EGUARD0504F TVS Diodes, designed for high-speed data lines and power applications. These diodes feature excellent clamping performance, low dynamic resistance, and high thermal stability. Suitable for telecom infrastructure, automotive electronics, and more, they ensure reliable operation under stress. Get started with SMC Diode Solutions send us your inquiry!
Specifications
- Product Status: Active
- Type: Steering (Rail to Rail)
- Unidirectional Channels: 4
- Bidirectional Channels: -
- Voltage - Reverse Standoff (Typ): 5V (Max)
- Voltage - Breakdown (Min): 6V
- Voltage - Clamping (Max) @ Ipp: 25V
- Current - Peak Pulse (10/1000µs): 6A (8/20µs)
- Power - Peak Pulse: 150W
- Power Line Protection: Yes
- Applications: DVI, HDMI, USB 2.0, USB OTG
- Capacitance @ Frequency: 3pF @ 1MHz
- Operating Temperature: -55°C ~ 125°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: 6-TSSOP, SC-88, SOT-363
- Supplier Device Package: SOT-363
