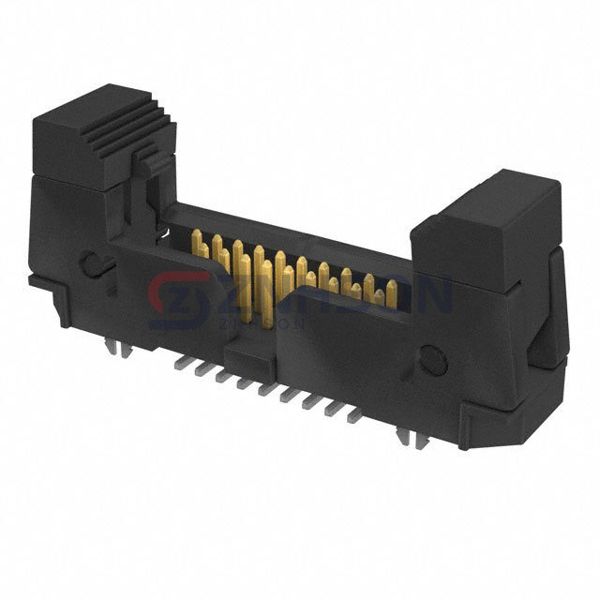

EHF-110-01-F-D-SM-LC-01-P
Samtec Inc.
Samtec Inc.
CONN HEADER SMD 20POS 1.27MM
$7.63
Available to order
Reference Price (USD)
1+
$5.45000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Experience top-tier connectivity with EHF-110-01-F-D-SM-LC-01-P Samtec Inc. Rectangular Connectors - Headers, Male Pins. These connectors offer superior signal integrity, easy assembly, and long-term reliability for diverse applications. Whether for automotive, industrial, or consumer electronics, Samtec Inc. has you covered. Interested? Reach out to us for expert advice and competitive pricing!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.050" (1.27mm)
- Number of Positions: 20
- Number of Rows: 2
- Row Spacing - Mating: 0.050" (1.27mm)
- Number of Positions Loaded: 19
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Latch Lock/Eject Hooks
- Contact Length - Mating: 0.120" (3.05mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.325" (8.25mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 3.00µin (0.076µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled
- Features: Board Lock, Keying Slot, Pick and Place
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: -
- Insulation Color: Black
- Current Rating (Amps): 1.75A
- Voltage Rating: -
Related Products
Amphenol ICC (FCI)
68016-402HLF
Amphenol ICC (FCI)
77315-113-36LF
Preci-Dip
399-V3-135-10-009101
Samtec Inc.
TMM-102-04-G-D-SM
Samtec Inc.

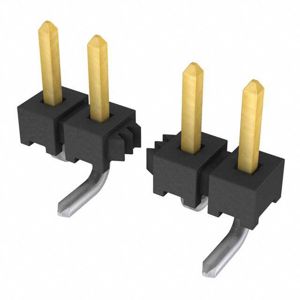

TMM-105-01-F-S-SM-P
Amphenol ICC (FCI)

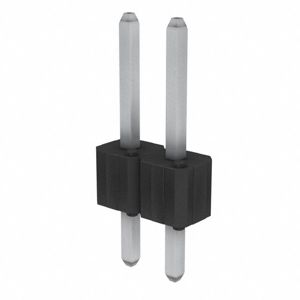

69190-402
Samtec Inc.

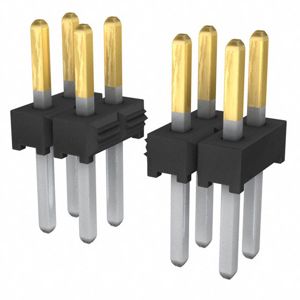

TMM-130-04-S-D
Mill-Max Manufacturing Corp.

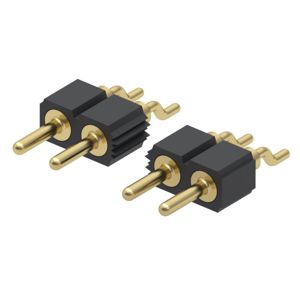

830-10-007-40-028000
TE Connectivity Deutsch Connectors

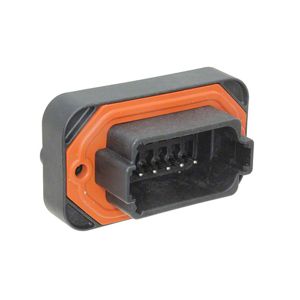

DT13-12PB
