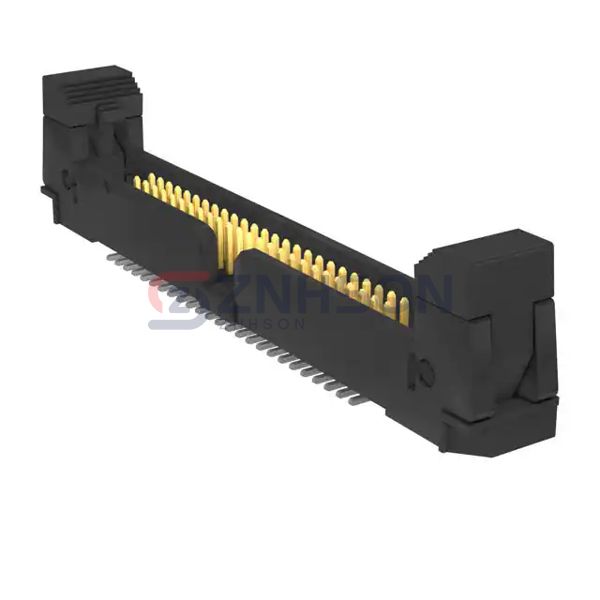

EHF-125-01-F-D-SM-K
Samtec Inc.
Samtec Inc.
CONN HEADER SMD 50POS 1.27MM
$10.65
Available to order
Reference Price (USD)
1+
$10.64667
500+
$10.5402033
1000+
$10.4337366
1500+
$10.3272699
2000+
$10.2208032
2500+
$10.1143365
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The EHF-125-01-F-D-SM-K Samtec Inc. Rectangular Connectors - Headers, Male Pins are the perfect choice for high-performance electronic connections. Designed for durability and efficiency, they support a wide range of applications, from automotive to IoT devices. Experience the Samtec Inc. difference today. Contact us for more details and a customized solution!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.050" (1.27mm)
- Number of Positions: 50
- Number of Rows: 2
- Row Spacing - Mating: 0.050" (1.27mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Latch Lock/Eject Hooks
- Contact Length - Mating: 0.120" (3.05mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.325" (8.25mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 3.00µin (0.076µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled
- Features: Keying Slot, Pick and Place
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: -
- Insulation Color: Black
- Current Rating (Amps): 1.75A
- Voltage Rating: -
Related Products
Preci-Dip
451-80-230-00-017101
Sullins Connector Solutions
GBC14SFBN-M30
Samtec Inc.
ZSS-105-07-S-D-1095
Samtec Inc.
HTSW-105-08-TM-S-RA
Adam Tech
2PH1-02-UA
Samtec Inc.
FTSH-111-01-F-DH
Amphenol ICC (FCI)

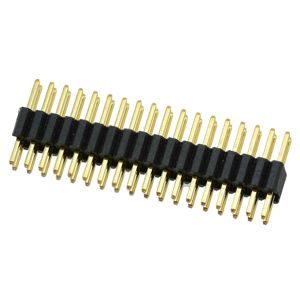

20021111-00036T4LF
