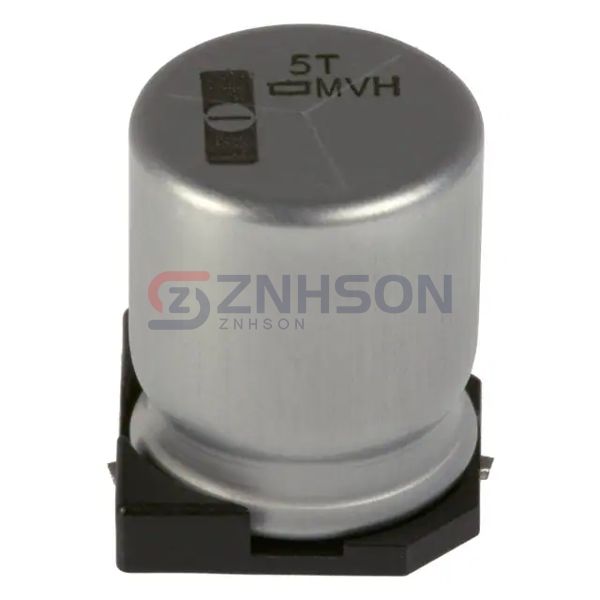

EMVH500ARA331MKG5S
United Chemi-Con
United Chemi-Con
CAP ALUM 330UF 20% 50V SMD
$2.34
Available to order
Reference Price (USD)
200+
$1.25790
400+
$1.07820
600+
$0.95840
1,000+
$0.83860
2,000+
$0.81464
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Experience superior performance with EMVH500ARA331MKG5S Aluminum Electrolytic Capacitors from United Chemi-Con. These capacitors are designed to meet the highest industry standards, offering low leakage current, high voltage ratings, and excellent thermal stability. Ideal for medical devices, renewable energy systems, and military applications, EMVH500ARA331MKG5S provides the reliability you need. Don't hesitate contact us now for more details and pricing options.
Specifications
- Product Status: Active
- Capacitance: 330 µF
- Tolerance: ±20%
- Voltage - Rated: 50 V
- ESR (Equivalent Series Resistance): 180mOhm @ 100kHz
- Lifetime @ Temp.: 5000 Hrs @ 125°C
- Operating Temperature: -40°C ~ 125°C
- Polarization: Polar
- Ratings: -
- Applications: Automotive
- Ripple Current @ Low Frequency: 350 mA @ 120 Hz
- Ripple Current @ High Frequency: 700 mA @ 100 kHz
- Impedance: -
- Lead Spacing: -
- Size / Dimension: 0.492" Dia (12.50mm)
- Height - Seated (Max): 0.630" (16.00mm)
- Surface Mount Land Size: 0.512" L x 0.512" W (13.00mm x 13.00mm)
- Mounting Type: Surface Mount
- Package / Case: Radial, Can - SMD
