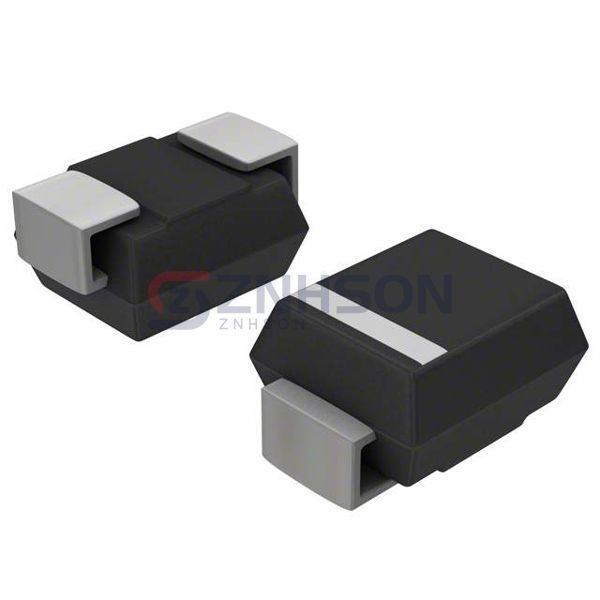

ER3D
SMC Diode Solutions
SMC Diode Solutions
SMT SUPER FAST RECTIFIER
$0.12
Available to order
Reference Price (USD)
1+
$0.12033
500+
$0.1191267
1000+
$0.1179234
1500+
$0.1167201
2000+
$0.1155168
2500+
$0.1143135
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your circuitry with SMC Diode Solutions's ER3D Single Rectifier Diodes, tailored for seamless integration and high reliability. These diodes excel in applications such as voltage clamping, freewheeling, and reverse polarity protection. With features like high surge withstand capacity and low thermal resistance, they are a must-have for any electronics engineer. SMC Diode Solutions guarantees top-tier quality and performance. Ready to take the next step? Reach out for a detailed consultation!
Specifications
- Product Status: Active
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 200 V
- Current - Average Rectified (Io): 3A
- Voltage - Forward (Vf) (Max) @ If: 950 mV @ 3 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): 35 ns
- Current - Reverse Leakage @ Vr: 5 µA @ 200 V
- Capacitance @ Vr, F: 45pF @ 4V, 1MHz
- Mounting Type: Surface Mount
- Package / Case: DO-214AB, SMC
- Supplier Device Package: SMC (DO-214AB)
- Operating Temperature - Junction: -65°C ~ 150°C
Related Products
Vishay General Semiconductor - Diodes Division
SS8P2L-M3/87A
Diodes Incorporated
SBR5E60P5-7D
Infineon Technologies
D711N68TXPSA1
Vishay General Semiconductor - Diodes Division
S1AHE3_A/H
Diotec Semiconductor
ST1M
NTE Electronics, Inc
NTE120
Solid State Inc.
1N2159R
Taiwan Semiconductor Corporation

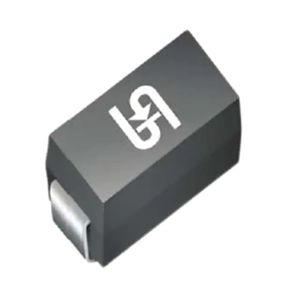

ES1F R3G
Diotec Semiconductor

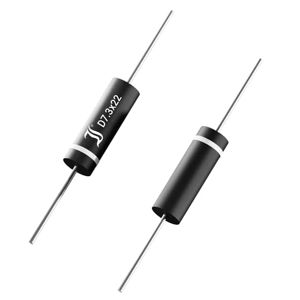

BY4
